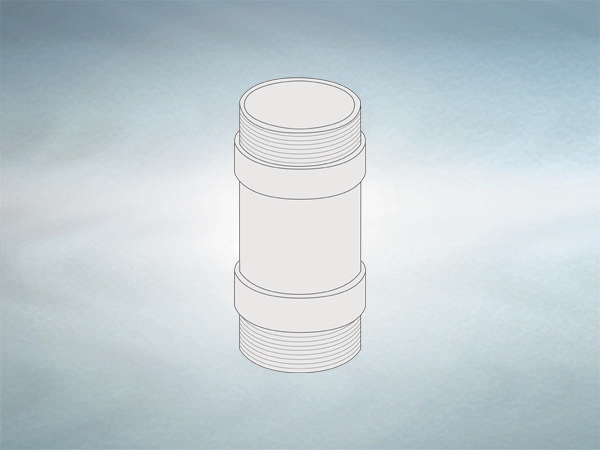

U47xx - Connecting Spigot

PL
U47xx

Threaded Pipework Connecting Spigot (xx Denotes length in cm; please specify length required.), with 4" BSP dia. outlet

Additional Information:

xx Denotes length in cm - please specify length required.

130 to 700 - min/max length
