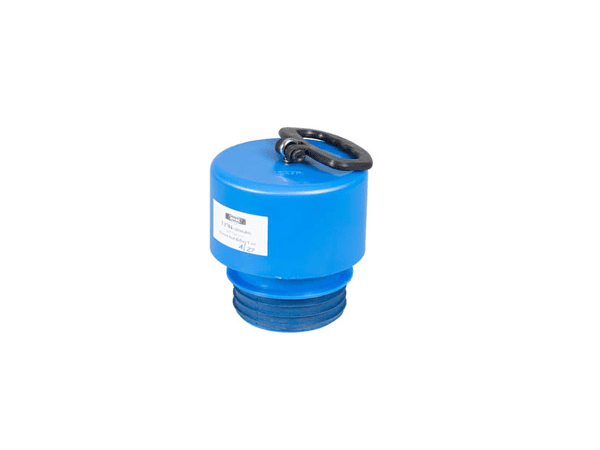

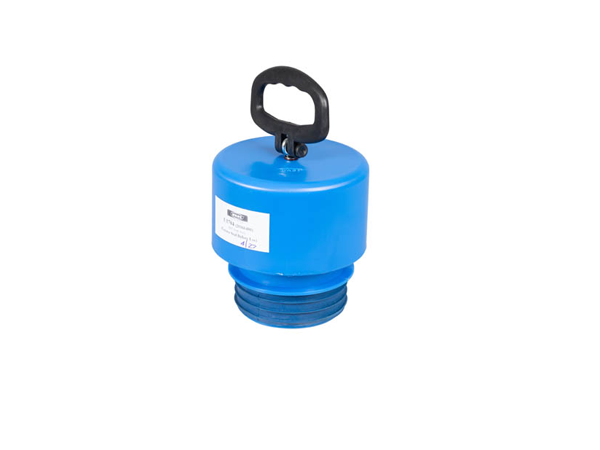

U1704 - Removable bell trap

PL
U1704

General Purpose Removable bell trap (50mm trap seal depth)

Additional Information:

Weight 0.5kg

50mm trap seal depth

To fit inside a 4" channel outlet. Note channel will be designed with a sump at the outlet to accommodate the trap.

1
£44.30
