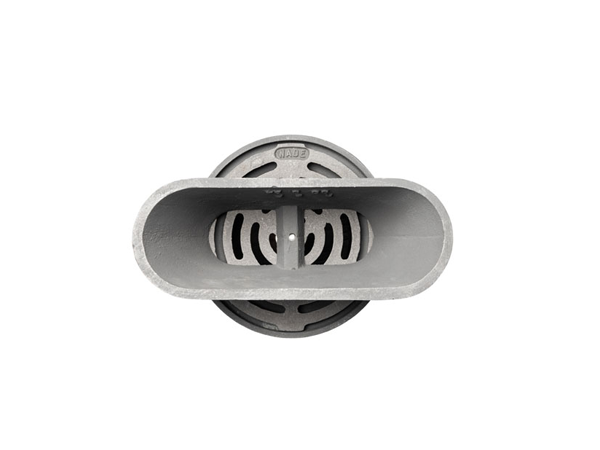

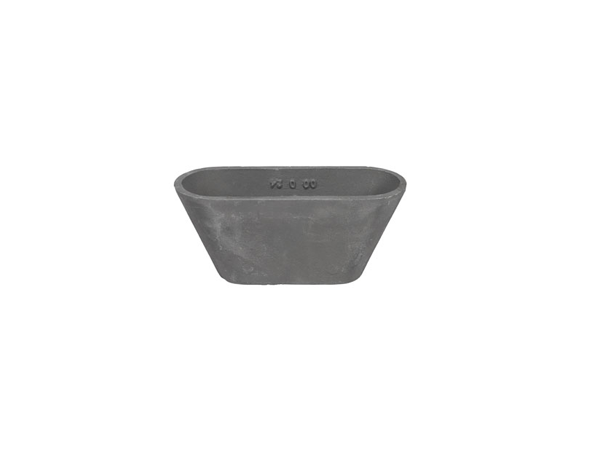

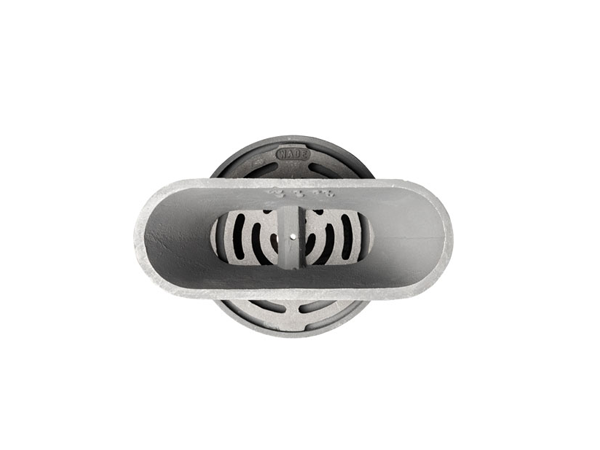

U602 - Bolt-on Funnel

CI
U602

Cast Iron General Purpose Bolt-on Funnel (To take multiple indirect waste pipes; ( for use with gratings. min. 150 mm dia. / sq ))

Additional Information:

Weight 2.2kg

To take multiple indirect waste pipes - ( for use with gratings. min. 150 mm dia. / sq )

Bolt-on funnels are for use with any grating, and are for applications where provision for indirect waste or condensate drainage is required in addition to floor drainage.
