U5232 - Funnel

SS
U5232

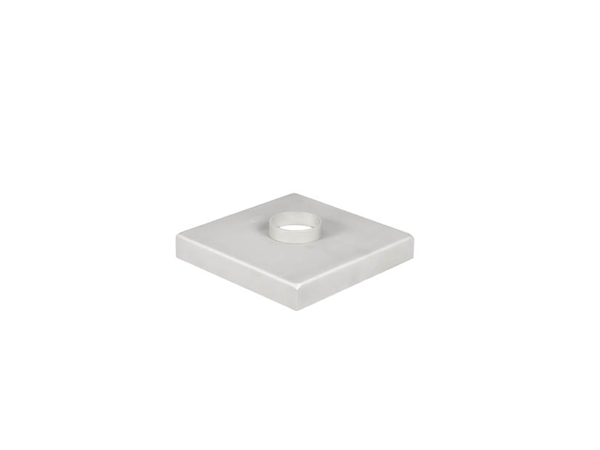

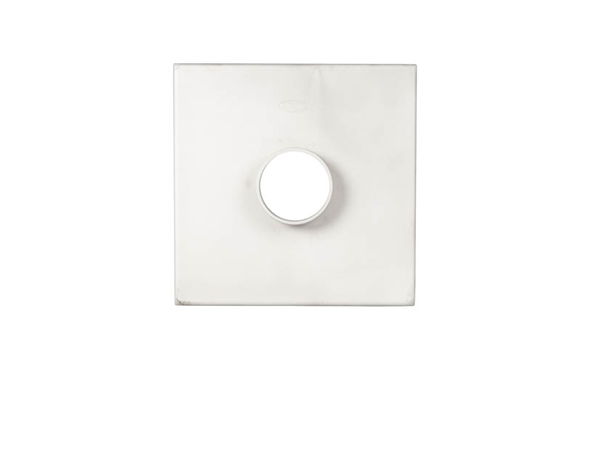

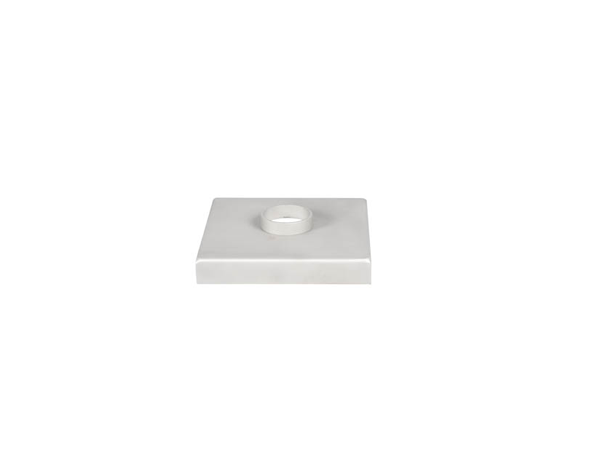

192 Square Stainless Steel Q series Stainless Steel Gully Funnel (Cover with 55 diameter inlet)

Additional Information:

Weight 0.73kg

Cover with 55 diameter inlet

This short funnel will fit 200 square stainless steel gullies and 225 square stainless steel gullies for use with sheet floor covering.

1
£83.50
