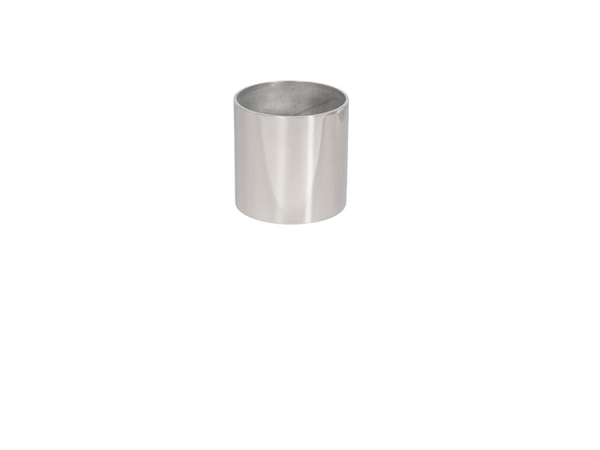

U511 - Bolt-on Funnel

SS
U511

Stainless Steel General Purpose Bolt-on Funnel (to take single indirect waste pipe. Polished)

Additional Information:

Weight 0.9kg

to take single indirect waste pipe

Bolt-on funnels are for use with any grating, and are for applications where provision for indirect waste or condensate drainage is required in addition to floor drainage.
