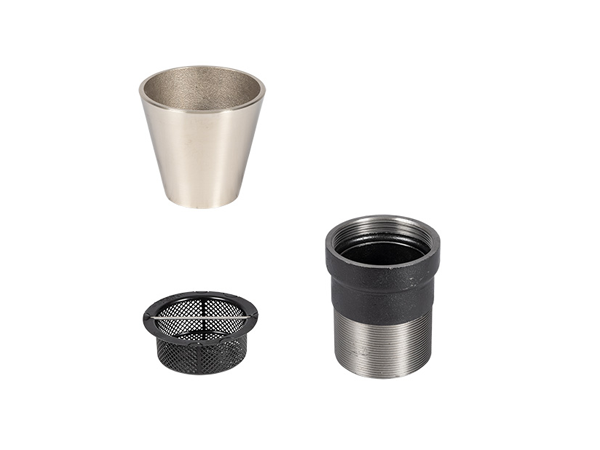

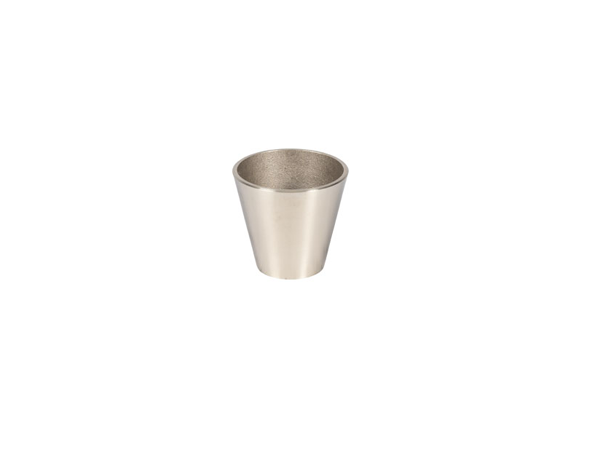

U501 - Bolt-on Funnel

NB
U501

Nickel Bronze General Purpose Bolt-on Funnel (To take single indirect waste pipe)

Additional Information:

Weight 1kg

To take single indirect waste pipe

Bolt-on funnels are for use with any grating, and are for applications where provision for indirect waste or condensate drainage is required in addition to floor drainage.

1
£57.10
