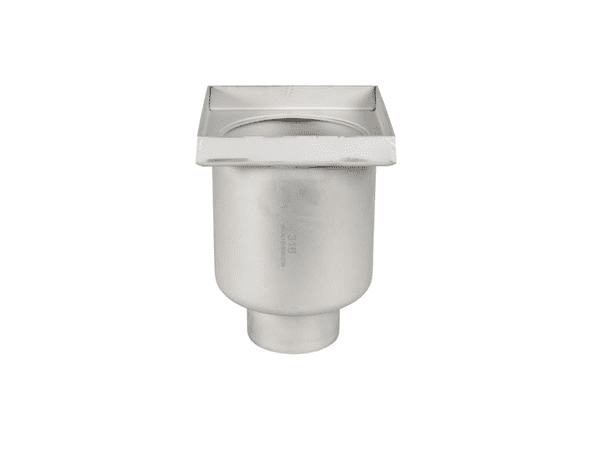

Q2834 - Bell Trapped Body Assembly

SS
Q2834

200 Square Stainless Steel Q series Bell Trapped Body Assembly, for use with tiles, marble, terrazzo, resin etc. flooring (Non-height adjustable plus Optional Side Inlets and Optional Grade 316), with 110.2 dia. vertical outlet

Additional Information:

Weight 3.8kg

Body free area 65cm²

Non-height adjustable plus Optional Side Inlets and Optional Grade 316

1
Starting at £267.70
