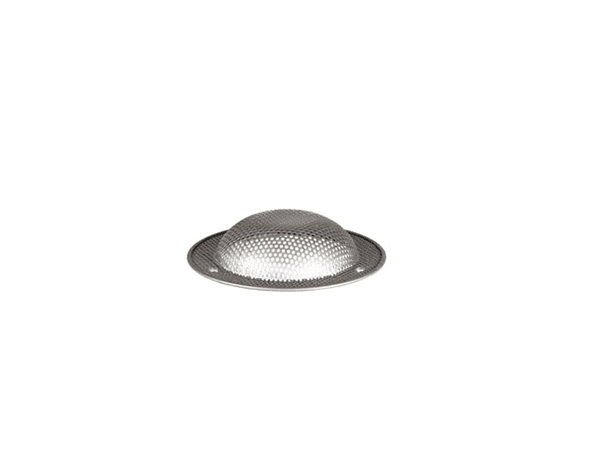

P1002 - Perforated Domed Grating

SS
P1002

195 Dia. Stainless Steel Planting Area / Roof Garden Perforated Domed Grating, for use with soil / planting areas (For applications with asphalt membrane, where all drainage is concealed by soil)

Additional Information:

Weight 1.3kg

Grating free area 115cm²

For applications with asphalt membrane, where all drainage is concealed by soil

Provides drainage of moisture in planting areas and flower boxes, minimising loss of soil.

1
£58.70
