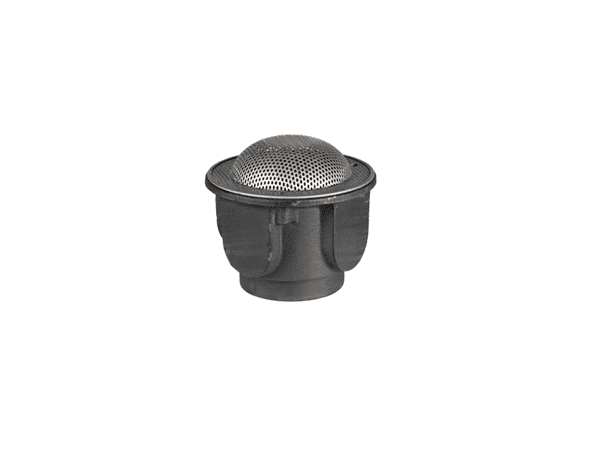

P1001 - Perforated Domed Grating

SS
P1001

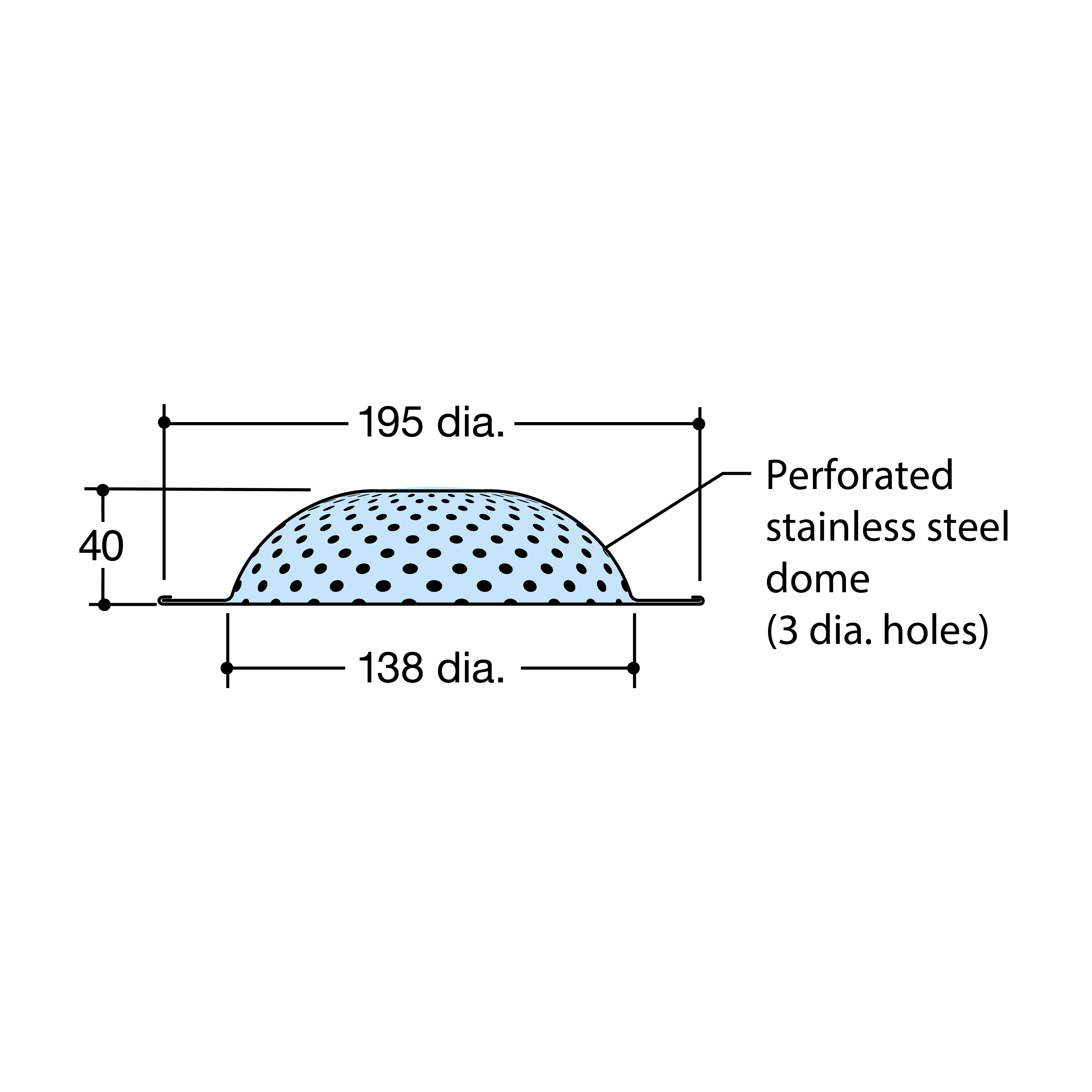

195 Dia. Stainless Steel Planting Area / Roof Garden Perforated Domed Grating, for use with soil / planting areas (For applications with sheet or brush-on membrane, where all drainage is concealed by soil)

Additional Information:

Weight 0.3kg

Grating free area 115cm²

For applications with sheet or brush-on membrane, where all drainage is concealed by soil

Provides drainage of moisture in planting areas and flower boxes, minimising loss of soil.

1
£45.00
