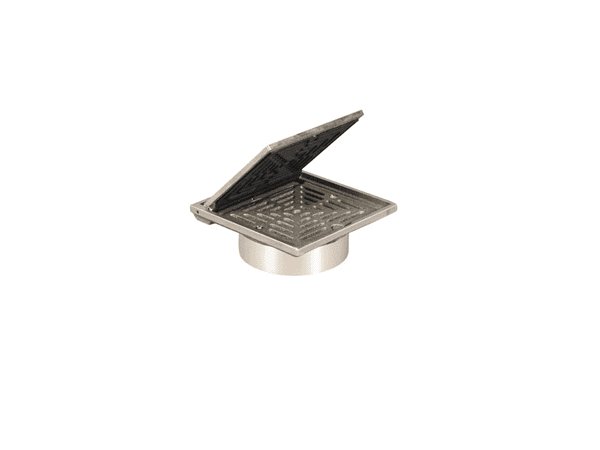

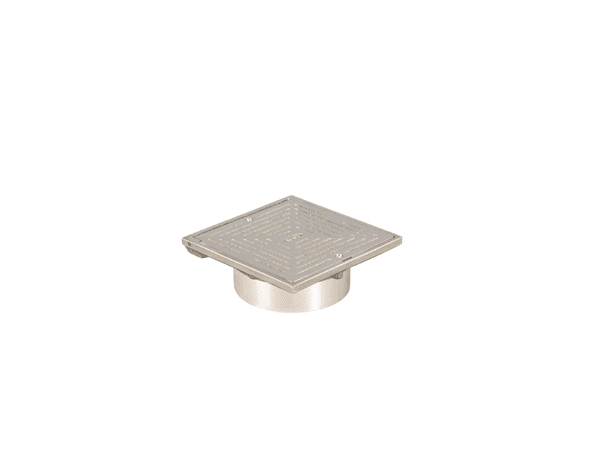

L5491 - Covered Grating

L15
NB
L5491

150 Square Nickel Bronze Direct Connection Covered Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Grating concealed by sealed solid hinged cover), with 110.2 dia. vertical outlet

Additional Information:

Weight 2.5kg

Grating free area 44cm²

Grating concealed by sealed solid hinged cover

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

1
£141.00
