L5401 - Covered Grating

L15
NB
L5401

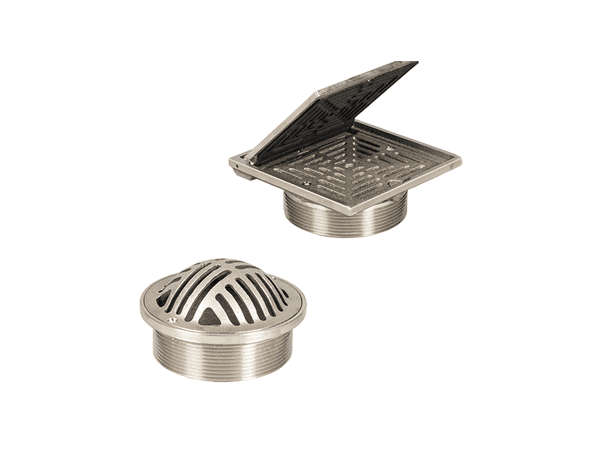

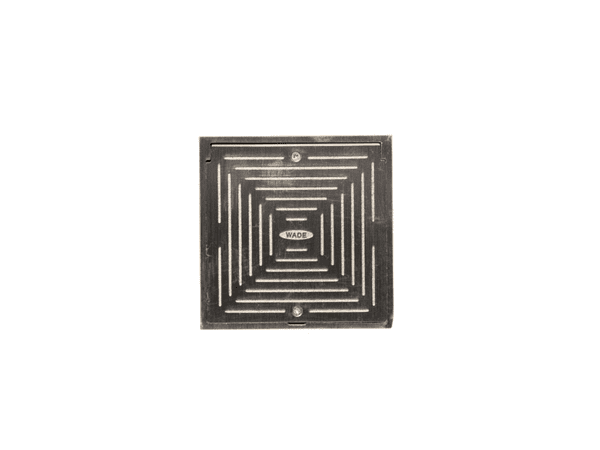

150 Square Nickel Bronze Vari-Level Covered Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Grating concealed by sealed solid hinged cover), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 2.5kg

Grating free area 44cm²

Grating concealed by sealed solid hinged cover

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

55 - Overall Height

1
£141.00
