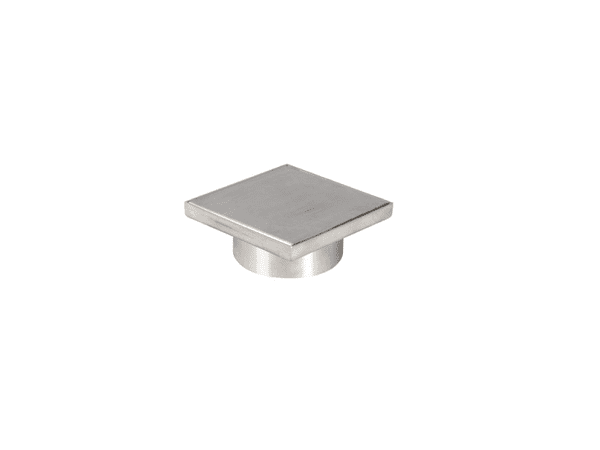

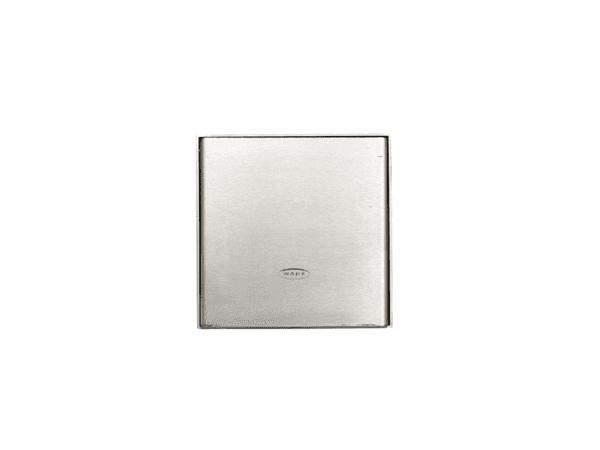

L5398 - Covered Grating

K3
SS
L5398

150 Square Stainless Steel Direct Connection Covered Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Grating concealed by solid hinged cover), with 110.2 dia. vertical outlet with 7mm grating aperture width

Additional Information:

Weight 1.3kg

Grating free area 31cm²

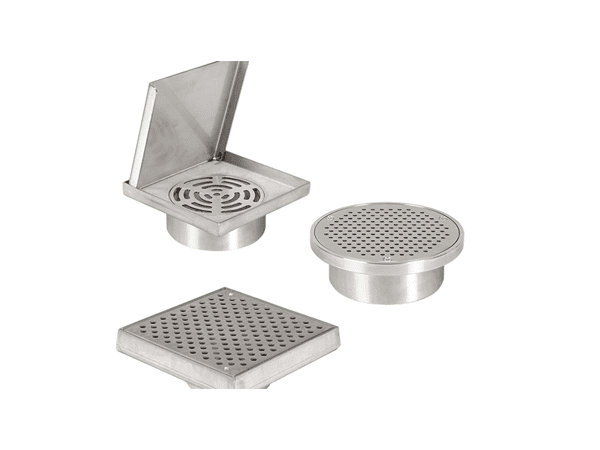

Grating concealed by solid hinged cover

For use in high specification applications including food preparation, showers and areas where high corrosion resistance is a requirement.

1
£147.40
