L5301 - Covered Grating

L15
NB
L5301

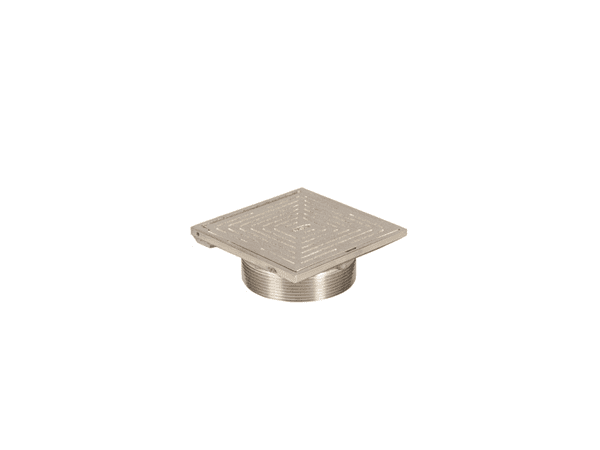

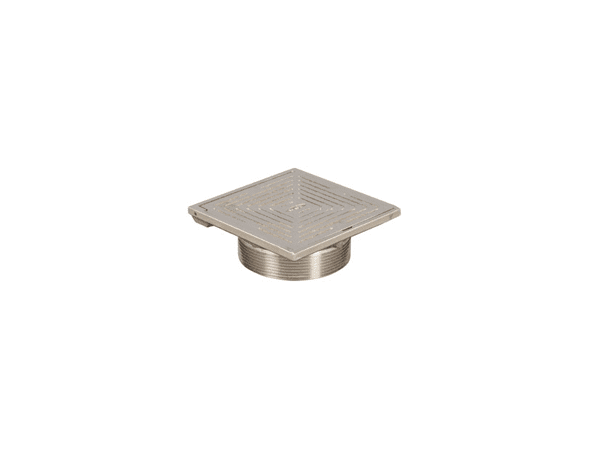

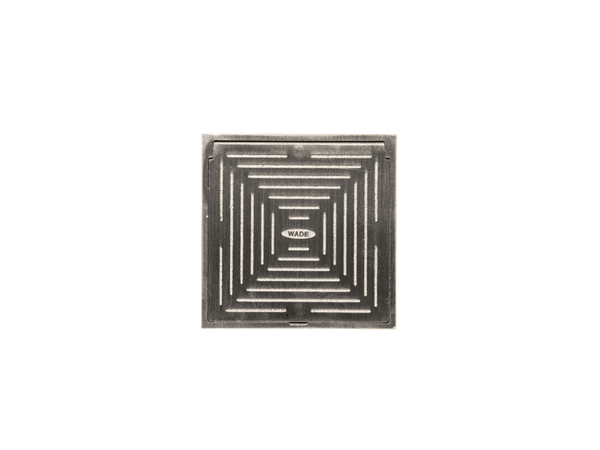

150 Square Nickel Bronze Vari-Level Covered Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Grating concealed by solid hinged cover), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 2.5kg

Grating free area 44cm²

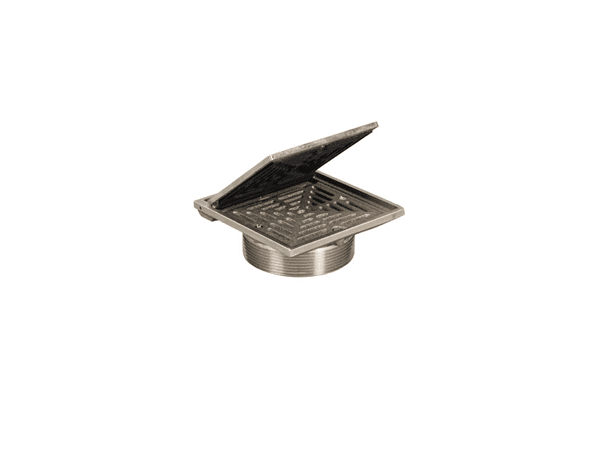

Grating concealed by solid hinged cover

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

55 - Overall Height

1
£106.10
