L3402 - Grating

L15
SS
L3402

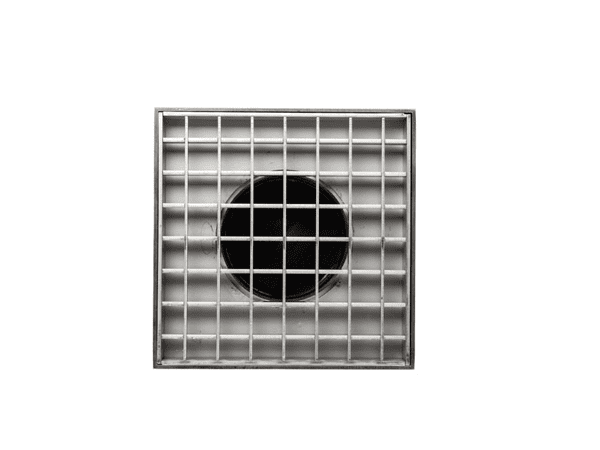

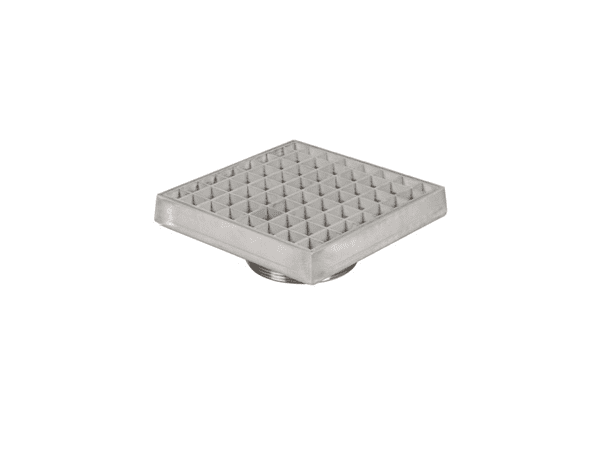

200 Square Stainless Steel Vari-Level Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Plain mesh, grating not secured), with 4" NPSM dia. Vertical outlet with 23mm grating aperture width

Additional Information:

Weight 2.8kg

Grating free area 290cm²

Plain mesh, grating not secured

For use in high specification applications including food preparation and areas where high corrosion resistance is a requirement.

1
£172.30
