L3091 - Grating

L15
NB
L3091

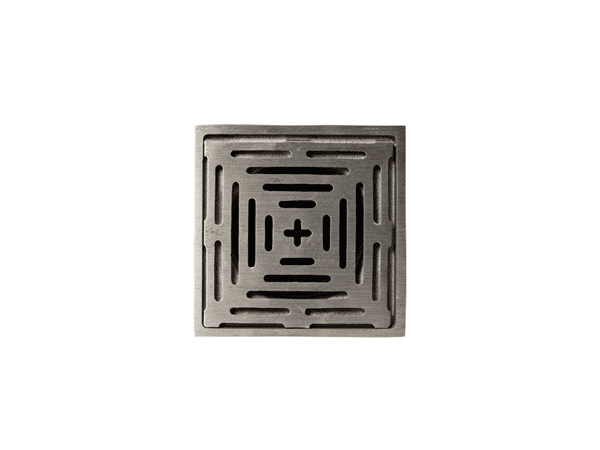

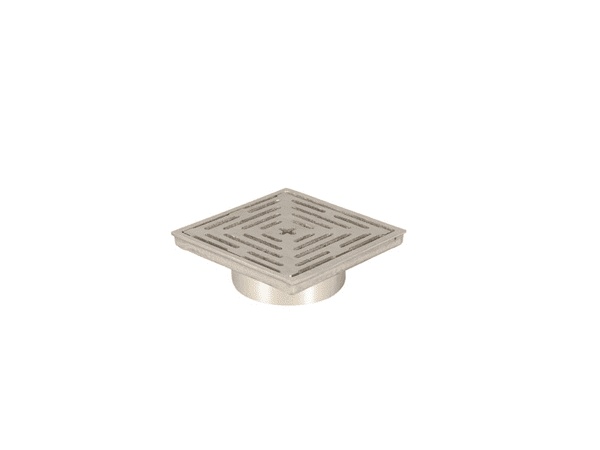

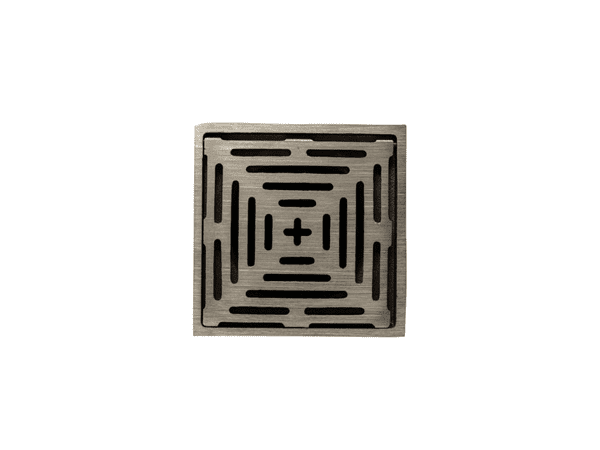

161 Square Nickel Bronze Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Square hinged grating), with 110.2 dia. vertical outlet with 7mm grating aperture width

Additional Information:

Weight 2.3kg

Grating free area 92cm²

Square hinged grating

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

1
£185.20
