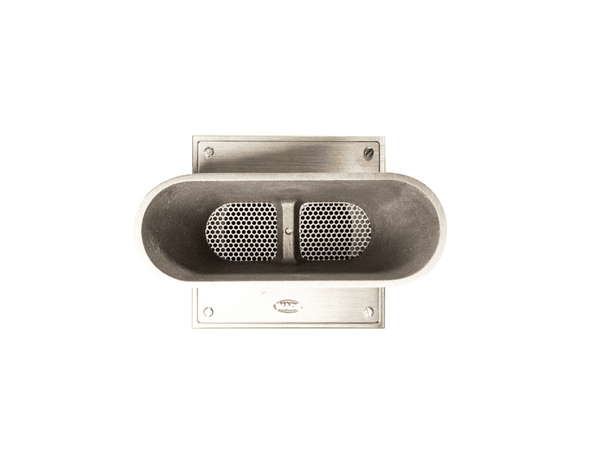

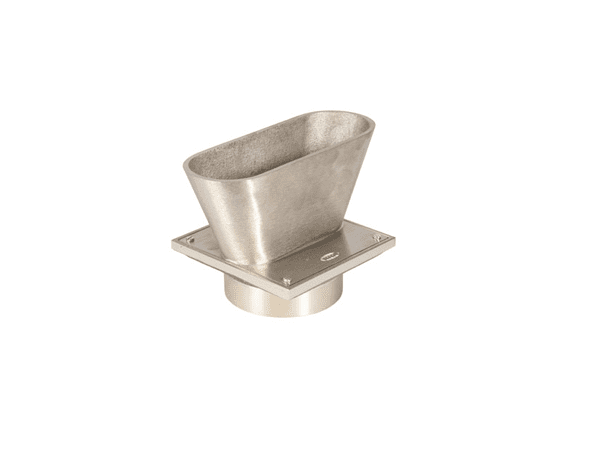

L2893 - Funnel

NB
L2893

150 Square Nickel Bronze Direct Connection Funnel, for use with tiles, marble, terrazzo, resin etc. flooring (To take multiple indirect waste pipes; with peripheral cover and vermin guard), with 110.2 dia. vertical outlet

Additional Information:

Weight 4.4kg

Grating free area 21cm²

To take multiple indirect waste pipes - with peripheral cover and vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

1
£222.20
