L2891 - Funnel

NB
L2891

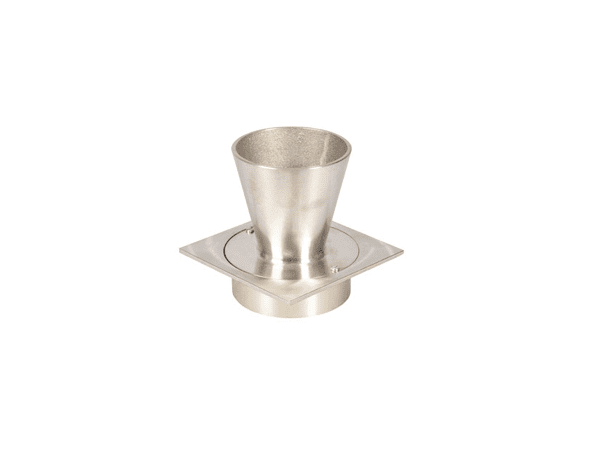

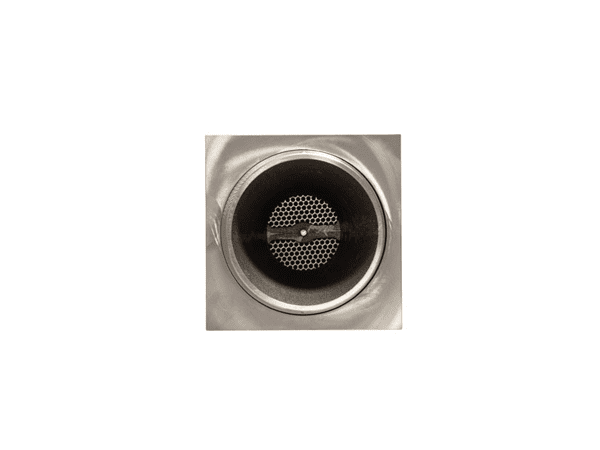

150 Square Nickel Bronze Direct Connection Funnel, for use with tiles, marble, terrazzo, resin etc. flooring (To take single indirect waste pipe; with peripheral cover and vermin guard), with 110.2 dia. vertical outlet

Additional Information:

Weight 3.4kg

Grating free area 12cm²

To take single indirect waste pipe - with peripheral cover and vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

1
£179.90
