L2801 - Funnel

NB
L2801

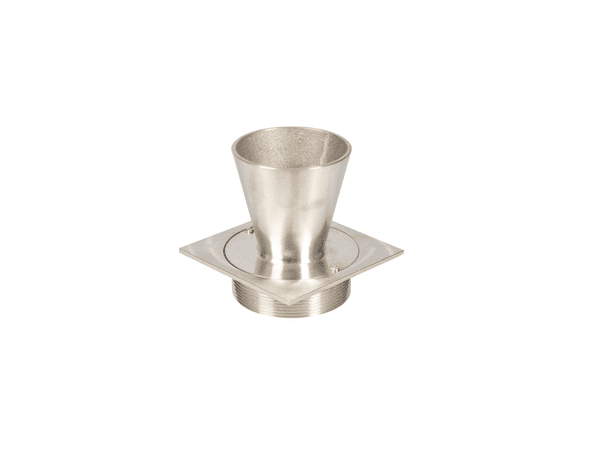

150 Square Nickel Bronze Vari-Level Funnel, for use with tiles, marble, terrazzo, resin etc. flooring (To take single indirect waste pipe; with peripheral cover + vermin guard), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 3.4kg

Grating free area 12cm²

To take single indirect waste pipe - with peripheral cover + vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

57 - Frame Height

1
£179.90
