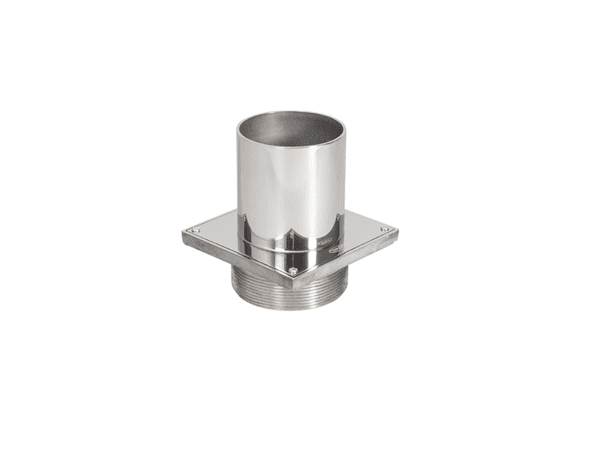

L2701 - Funnel

SS
L2701

150 Square Stainless Steel Vari-Level Funnel, for use with tiles, marble, terrazzo, resin etc. flooring (Condensate funnel with vermin guard), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 2.2kg

Grating free area 46cm²

Condensate funnel with vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

57 - Frame Height

1
£213.30
