L2601 - Grating

L15
CI
L2601

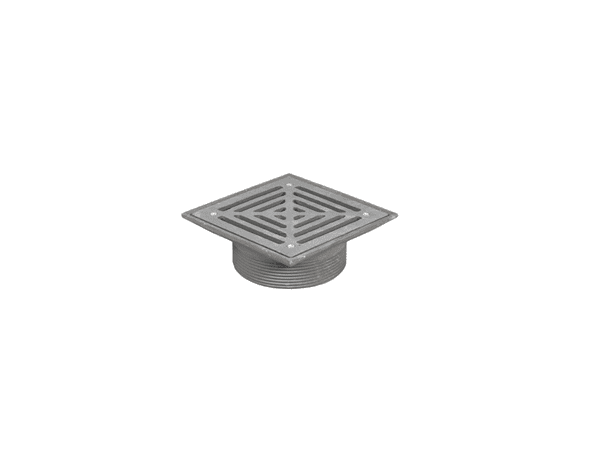

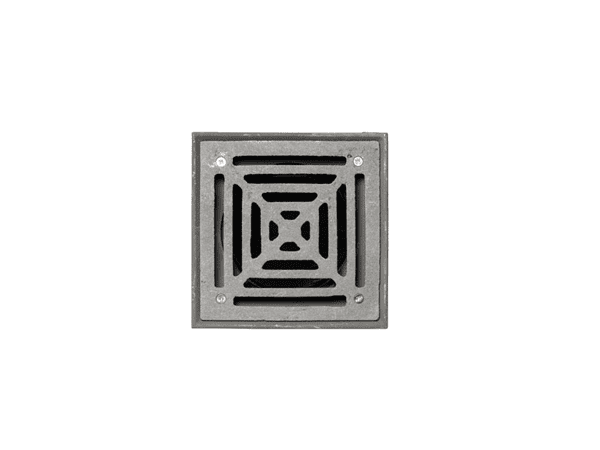

150 Square Cast Iron Vari-Level Grating, for use with unfinished (eg. bare concrete) or paved areas, with 4" NPSM dia. vertical outlet

Additional Information:

Weight 1.7kg

Grating free area 55cm²

Robust and durable items, suited for service and parking areas and plant rooms - also for restoration or refurbishment projects where there is a requirement to match period architecture.

57 - Overall Height

1
£32.50
