L2301 - Grating

L15
NB
L2301

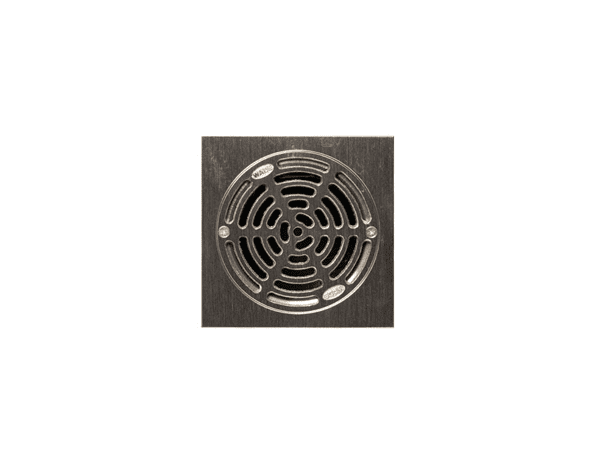

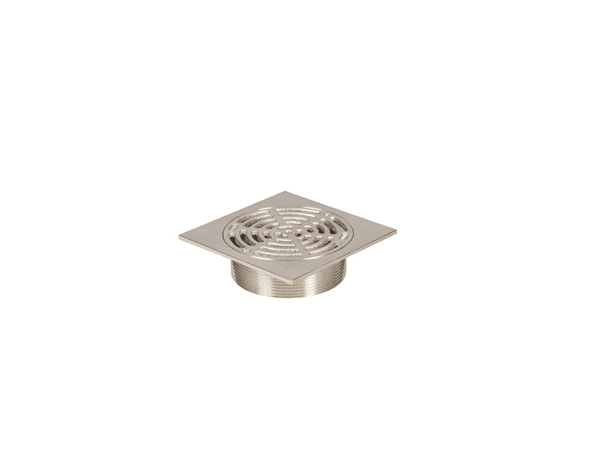

150 Square Nickel Bronze Vari-Level Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Square framed grating), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 1.3kg

Grating free area 40cm²

Square framed grating

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

48 - Overall Height

1
£58.80
