L2292 - Grating

L15
NB

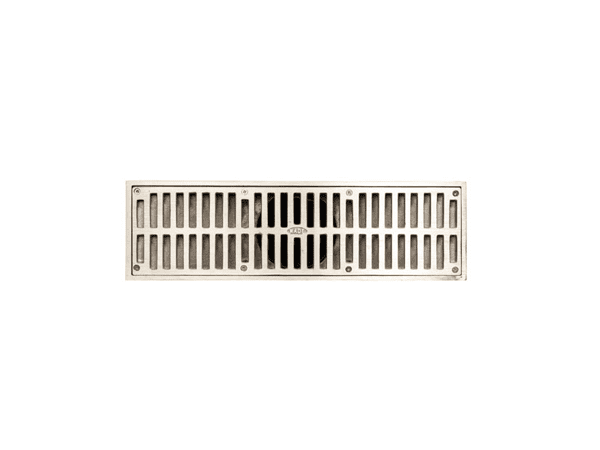

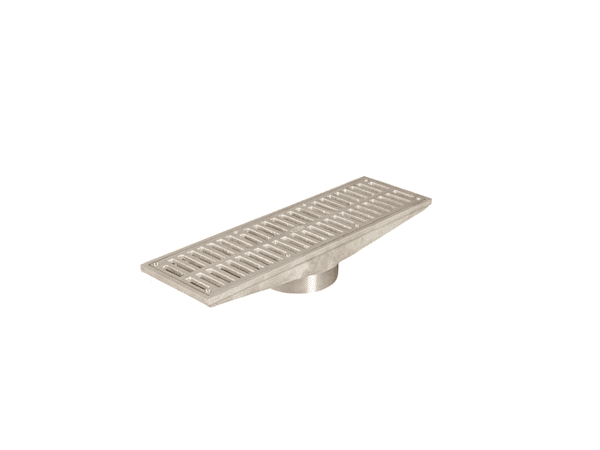

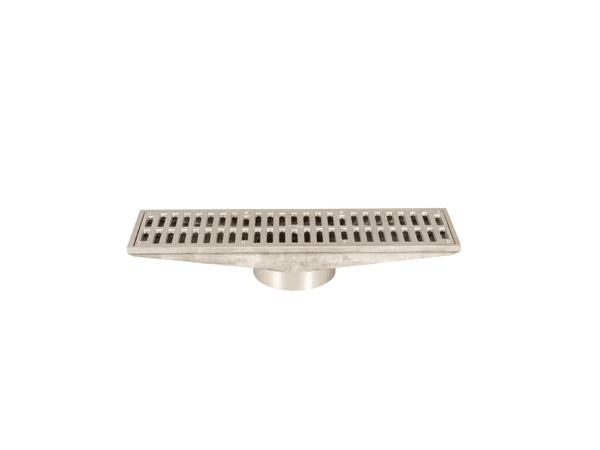

L2292

125 x 430 Nickel Bronze Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Rectangular), with 110.2 dia. vertical outlet

Additional Information:

Weight 5.6kg

Grating free area 155cm²

Rectangular

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

1
£320.00
