L2196 - Grating

L15
SS

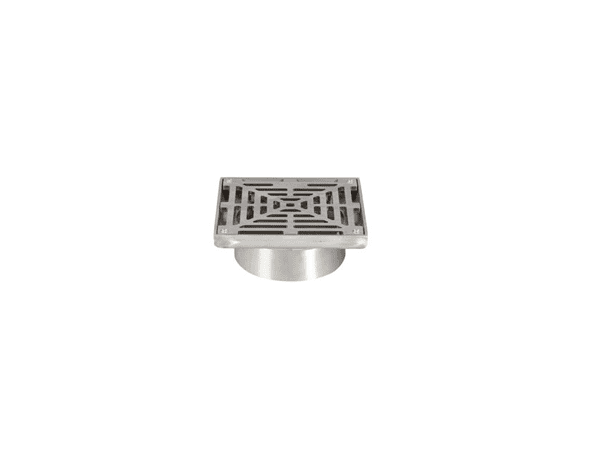

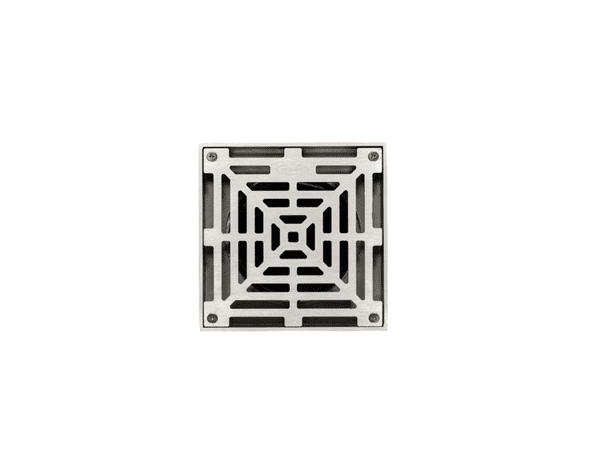

L2196

147 Square Stainless Steel Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Square Grating), with 110.2 dia. vertical outlet

Additional Information:

Weight 1.4kg

Grating free area 82cm²

Square Grating

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

1
£183.50
