K3594 - Grating

K3
SS
K3594

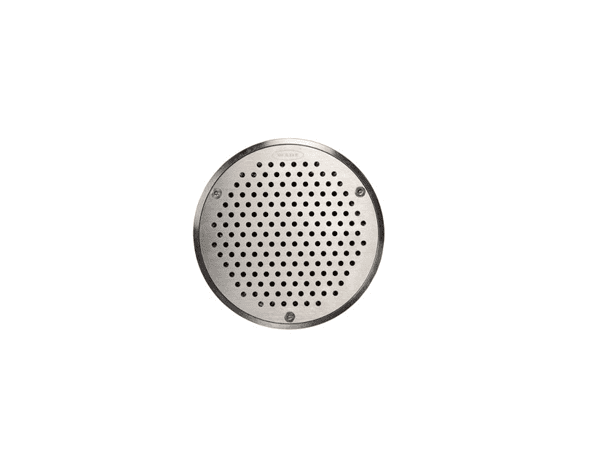

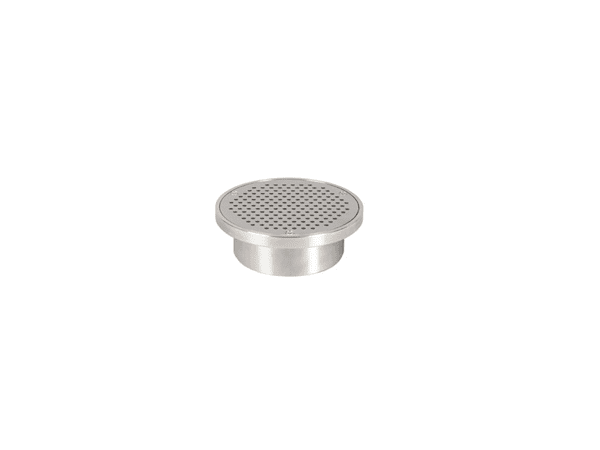

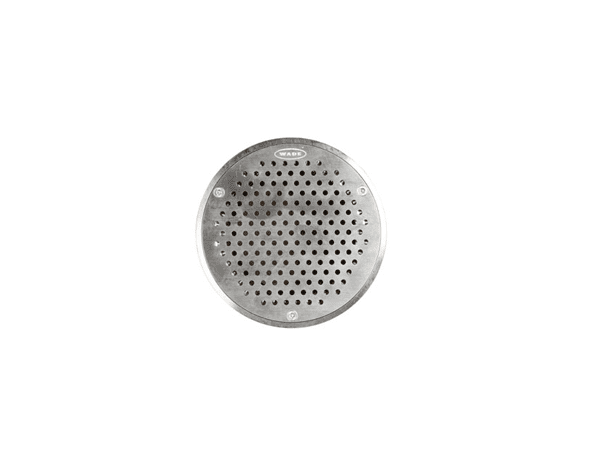

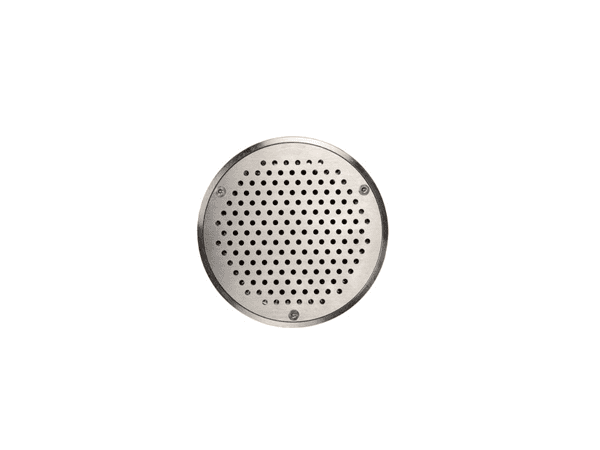

150 Dia. Stainless Steel Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Circular security grating), with 110.2 dia. vertical outlet with 4mm grating aperture width

Additional Information:

Weight 1.3kg

Grating free area 20cm²

Circular security grating

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement. Includes pin-torx security screws as standard - particularly suited to security areas such as prison cells.

1
£174.10
