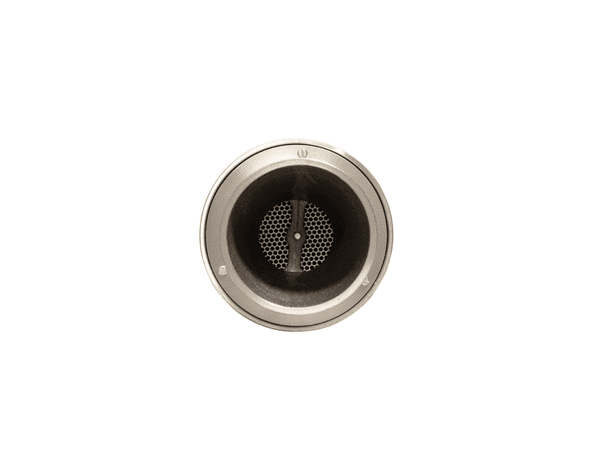

K3391 - Funnel

NB
K3391

150 Dia. Nickel Bronze Direct Connection Funnel, for use with tiles, marble, terrazzo, resin etc. flooring (To take single indirect waste pipe; with peripheral cover + vermin guard), with 110.2 dia. vertical outlet

Additional Information:

Weight 2.7kg

Grating free area 23cm²

To take single indirect waste pipe - with peripheral cover + vermin guard

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

1
£154.80
