K2801 - Grating

L15
SS
K2801

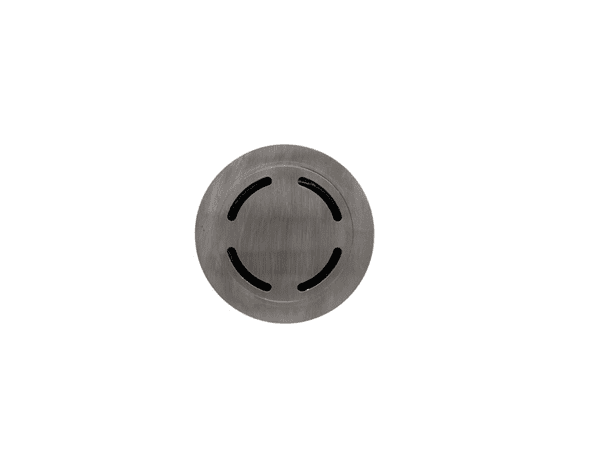

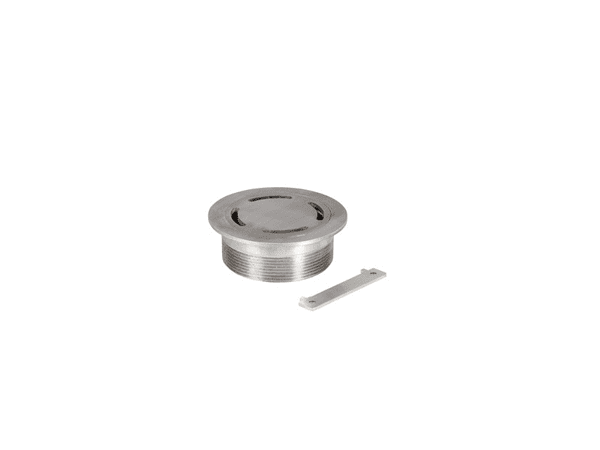

140 Dia. Stainless Steel Vari-Level Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Flanged with peripheral slot. Self securing), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 1.4kg

Grating free area 13cm²

Flanged with peripheral slot. Self securing

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

50 - Overall Height

1
£192.50
