K2601 - Funnel

NB
K2601

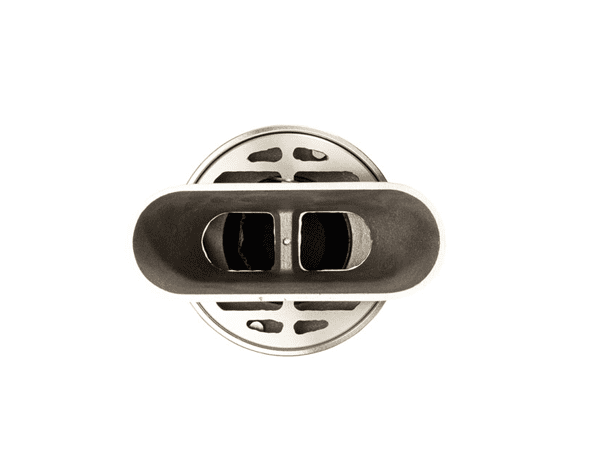

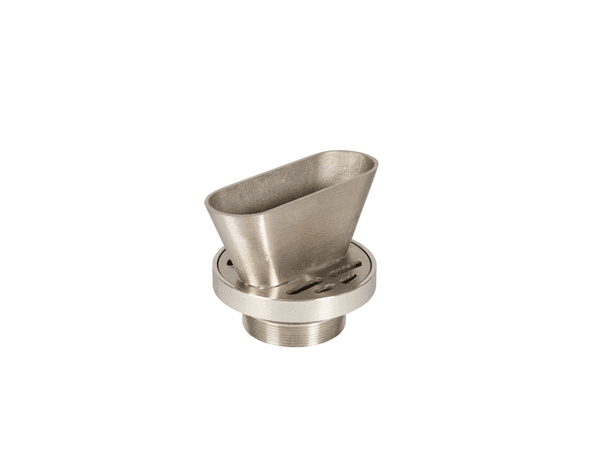

176 Dia. Nickel Bronze Vari-Level Funnel, for use with tiles, marble, terrazzo, resin etc. flooring (To take multiple indirect waste pipes; with peripheral grating. Unsecured), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 4.1kg

Grating free area 55cm²

To take multiple indirect waste pipes - with peripheral grating. Unsecured

Funnel to receive indirect waste pipes, condensate, and discharges from sinks, refrigeration units, boiling pans etc.

72 - Frame Height

1
£234.20
