K2491 - Grating

L15
NB
K2491

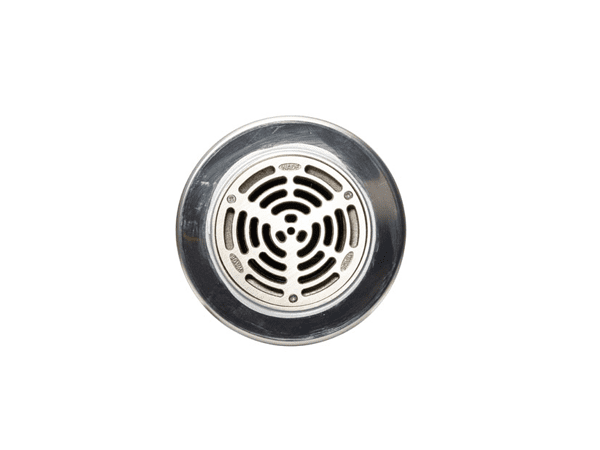

152 Dia. Nickel Bronze Direct Connection Grating, for use with trowel applied composition (Stainless steel flange 220mm dia, allows for 4mm flooring depth), with 110.2 dia. vertical outlet

Additional Information:

Weight 1.9kg

Grating free area 58cm²

Stainless steel flange 220mm dia, allows for 4mm flooring depth

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

4 - flooring thickness

1
£116.20
