K2407 - Grating

L15
SS
K2407

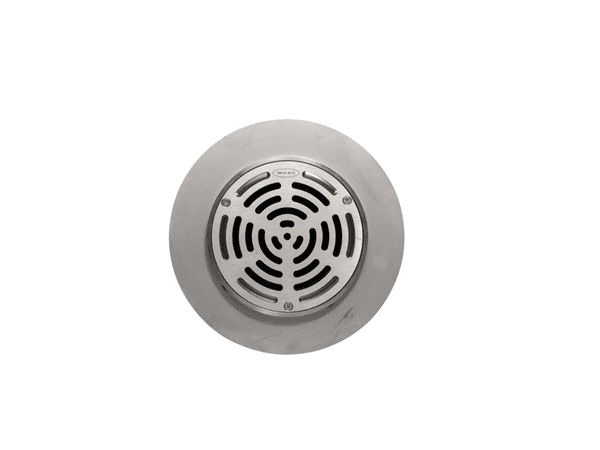

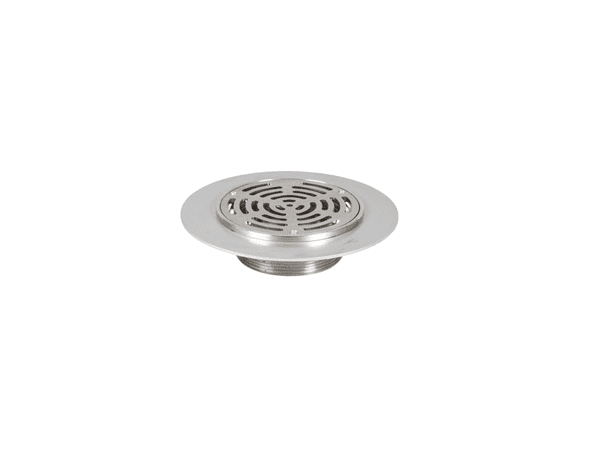

152 Dia. Stainless Steel Vari-Level Grating, for use with trowel applied composition (Stainless steel flange 220mm dia, allows for 6mm flooring depth), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 2.5kg

Grating free area 58cm²

Stainless steel flange 220mm dia, allows for 6mm flooring depth

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

53 - Overall Height

1
£208.70
