K2401 - Grating

L15
NB
K2401

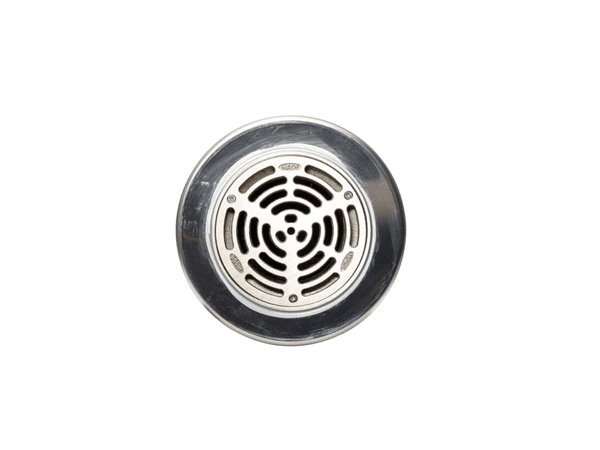

152 Dia. Nickel Bronze Vari-Level Grating, for use with trowel applied composition (Stainless steel flange 220mm dia, allows for 4mm flooring depth), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 1.9kg

Grating free area 58cm²

Stainless steel flange 220mm dia, allows for 4mm flooring depth

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

4 - flooring thickness

1
£105.80
