K2201 - Grating

L15
NB
K2201

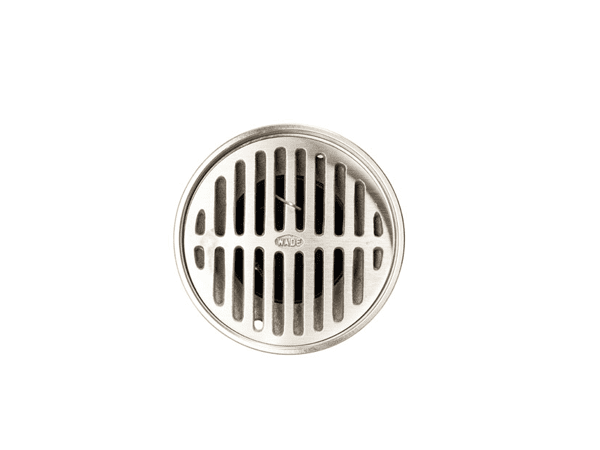

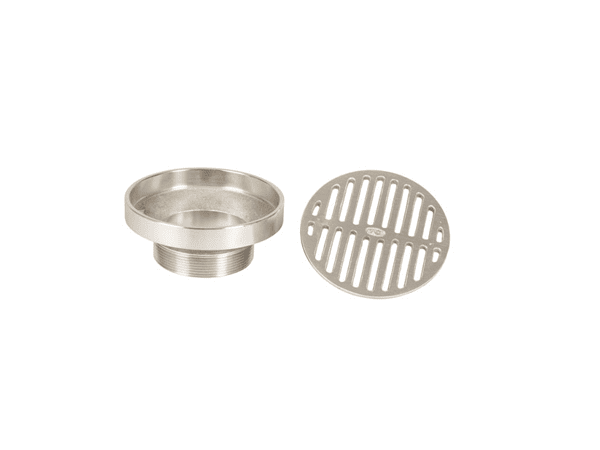

176 Dia. Nickel Bronze Vari-Level Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Indirect waste connector), with 4" NPSM dia. vertical outlet

Additional Information:

Weight 2.5kg

Grating free area 73cm²

Indirect waste connector

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

72 - Overall Height

1
£157.30
