K2197 - Grating

L15
SS
K2197

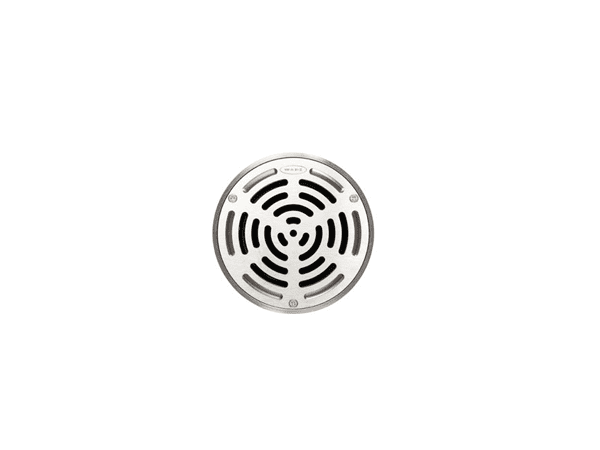

150 Dia. Stainless Steel Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Circular grating), with 110.2 dia. vertical outlet

Additional Information:

Weight 1kg

Grating free area 58cm²

Circular grating

For use in high specification applications including food preparation, prison cells, showers and areas where high corrosion resistance is a requirement.

1
£154.00
