K2193 - Grating

L15
NB
K2193

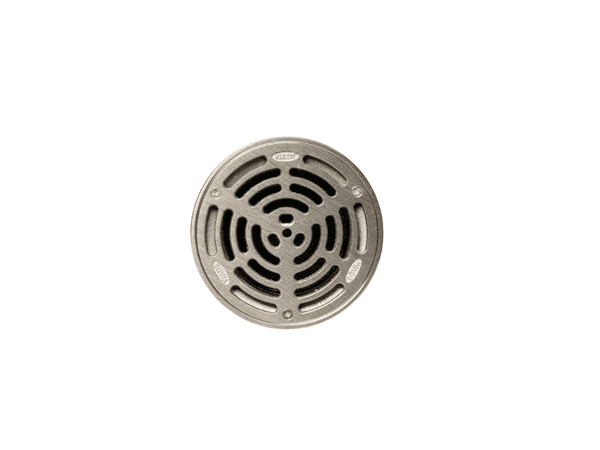

152 Dia. Nickel Bronze Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (Standard circular grating), with 110.2 dia. vertical outlet

Additional Information:

Weight 1.5kg

Grating free area 58cm²

Standard circular grating

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

1
Starting at £69.70
