K1941 - Grating

K3
NB
K1941

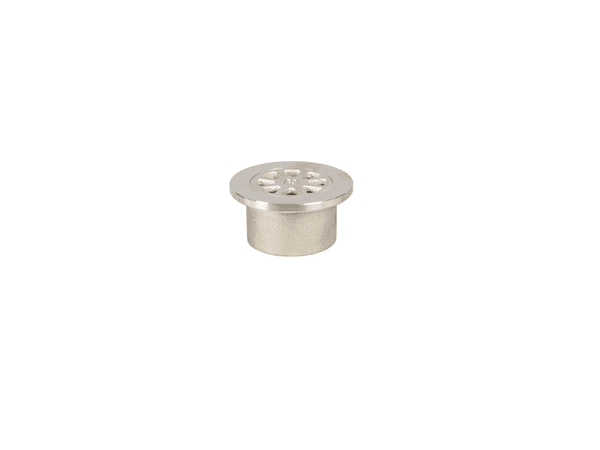

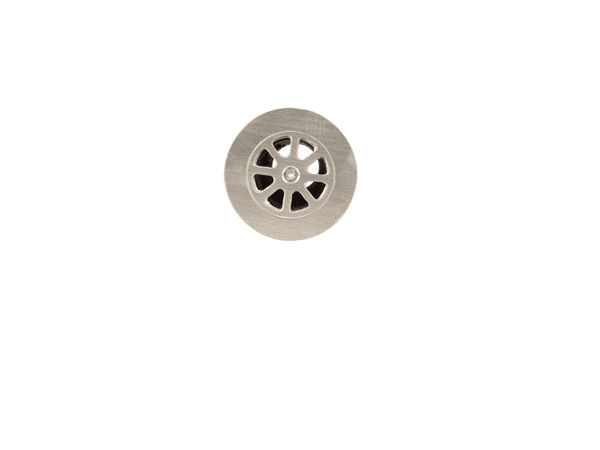

98 Dia. Nickel Bronze Direct Connection Grating, for use with tiles, marble, terrazzo, resin etc. flooring (For direct connection to 50mm pipework. With central securing screw), with 2" BSP dia. vertical outlet

Additional Information:

Weight 0.9kg

Grating free area 11cm²

For direct connection to 50mm pipework. With central securing screw

Durable, superbly finished items particularly suited to a high volume of pedestrian traffic.

1
£90.40
