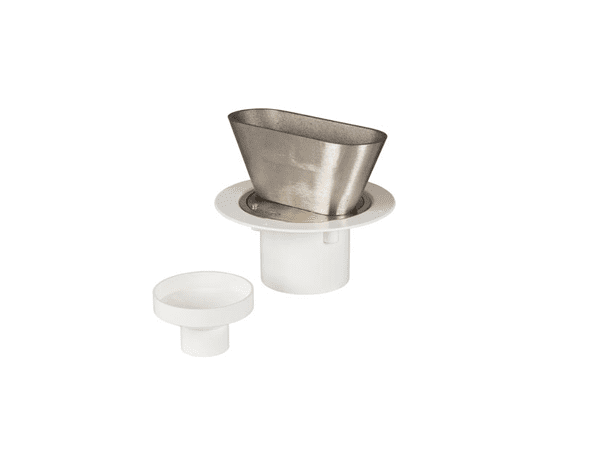

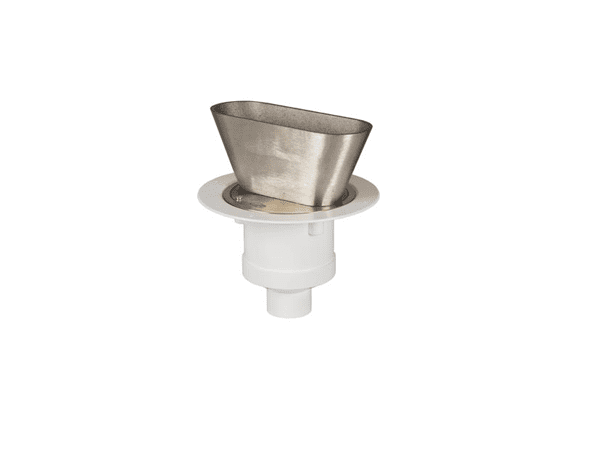

GV6823 - Trapped Gully with Vertical Outlet

Non-Load Bearing
NB
GV6823

160 Dia. Nickel Bronze Trapped Gully with Vertical Outlet, for use with flexible sheet floor covering (eg. vinyl) (110mm spigot outlet. A reducer is supplied for connection to 50mm pipework.), with 110.2, 2" Socket BS 5255 dia. vertical outlet

Additional Information:

Weight 3.7kg

Body free area 14cm²

110mm spigot outlet. A reducer is supplied for connection to 50mm pipework.

A compact, lightweight, trapped gully with funnel (oval) 224L x 85W x 99H for use in areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.
