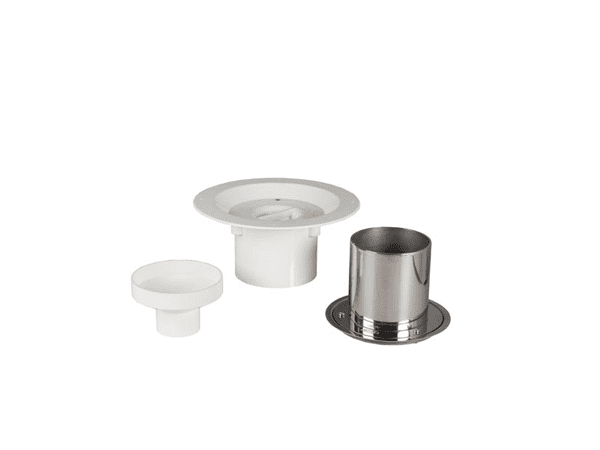

GV6817 - Trapped Gully with Vertical Outlet

Non-Load Bearing
SS
GV6817

160 Dia. Stainless Steel Trapped Gully with Vertical Outlet, for use with flexible sheet floor covering (eg. vinyl) (110mm spigot outlet. A reducer is supplied for connection to 50mm pipework.), with 110.2, 2" Socket BS 5255 dia. vertical outlet

Additional Information:

Weight 1.7kg

Body free area 14cm²

110mm spigot outlet. A reducer is supplied for connection to 50mm pipework.

A compact, lightweight, trapped gully with polished funnel (parallel) 101 Dia x 101H for use in areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.
