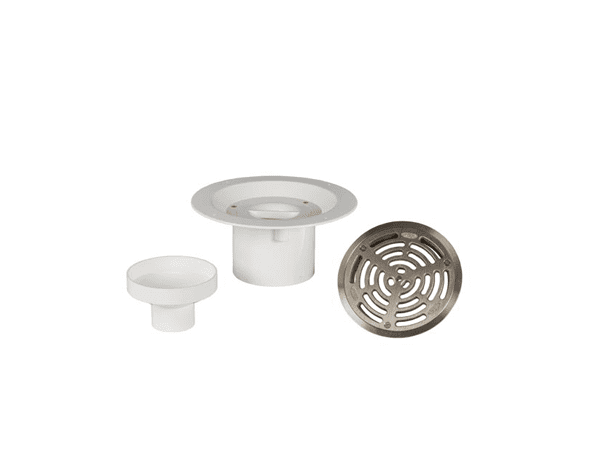

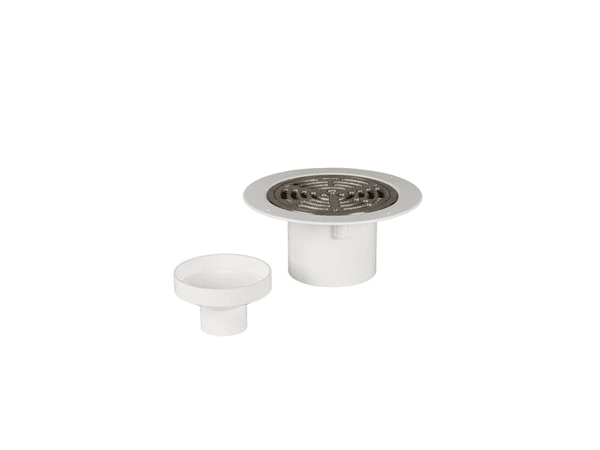

GV6103 - Trapped Shower Gully with Vertical Outlet

L15
NB
GV6103

160 Dia. Nickel Bronze Trapped Shower Gully with Vertical Outlet, for use with flexible sheet floor covering (eg. vinyl) (110mm spigot outlet. A reducer is supplied for connection to 50mm pipework.), with 110.2, 2" Socket BS 5255 dia. vertical outlet

Additional Information:

Weight 1.5kg

Body free area 14cm²

110mm spigot outlet. A reducer is supplied for connection to 50mm pipework.

A compact, lightweight, trapped gully with slotted grating for use in shower areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.

1
£130.20
