GV5823 - 'P' Trapped Gully Assembly

Non-Load Bearing
NB
GV5823

160 Dia. Nickel Bronze 'P' Trapped Gully Assembly, for use with flexible sheet floor covering (eg. vinyl) (2" socket outlet.), with 2" Socket BS 5255 dia. horizontal outlet

Additional Information:

Weight 3.7kg

Body free area 14cm²

2" socket outlet.

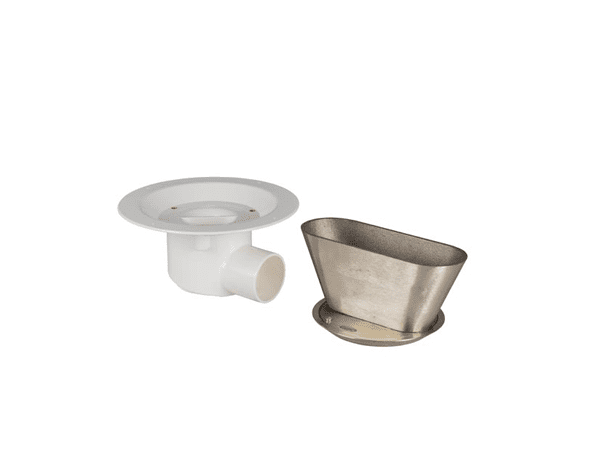

GV5823 is a compact, lightweight, ‘P’ trapped gully with funnel (oval) 224L x 85W x 99H for areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.

1
£229.00
