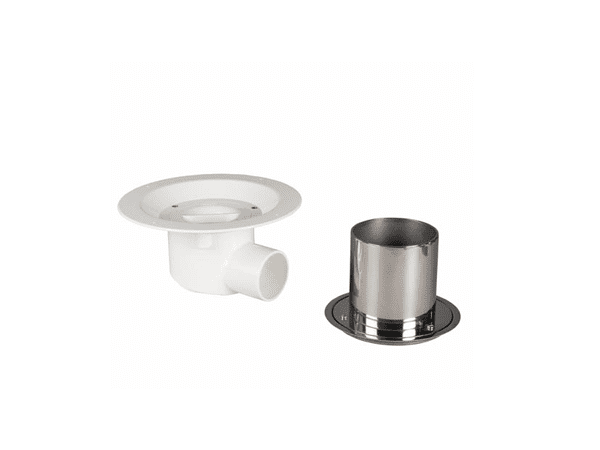

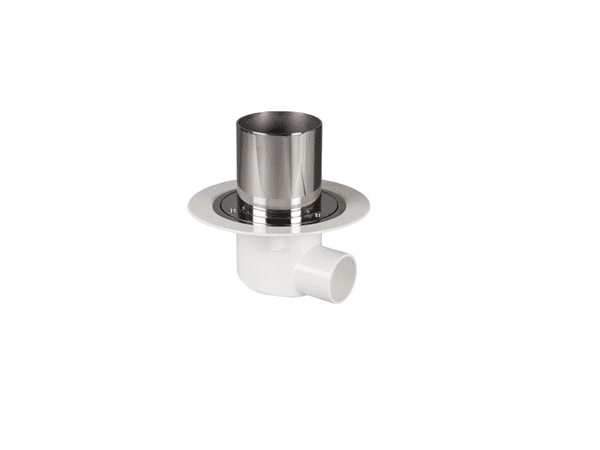

GV5817 - 'P' Trapped Gully Assembly

Non-Load Bearing
SS
GV5817

160 Dia. Stainless Steel 'P' Trapped Gully Assembly, for use with flexible sheet floor covering (eg. vinyl) (2" socket outlet.), with 2" Socket BS 5255 dia. horizontal outlet

Additional Information:

Weight 1.7kg

Body free area 14cm²

2" socket outlet.

GV5817 is a compact, lightweight, ‘P’ trapped gully with polished funnel (parallel) 101 Dia x 100H for areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.
