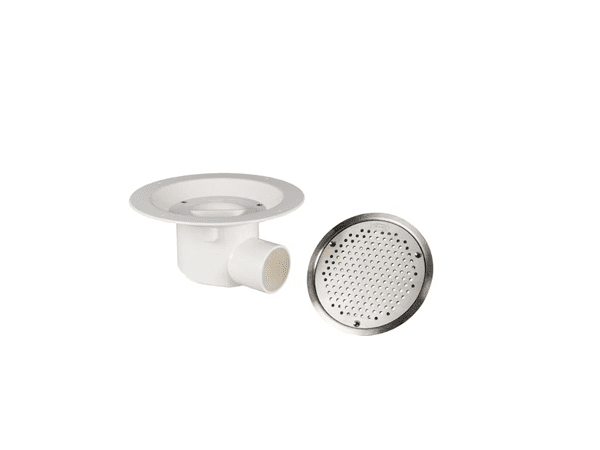

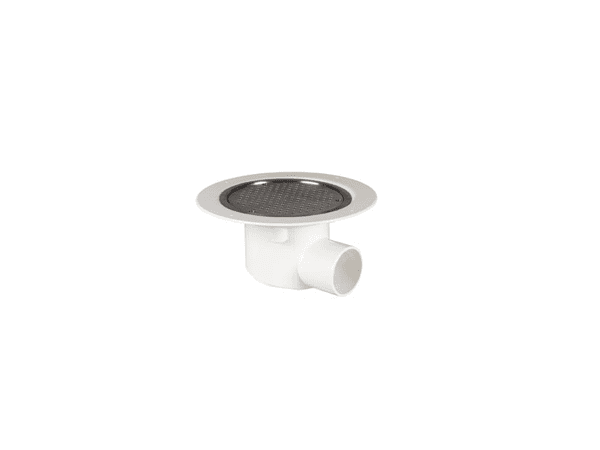

GV5247 - 'P' Trapped Shower Gully Assembly

K3
SS
GV5247

160 Dia. Stainless Steel 'P' Trapped Shower Gully Assembly, for use with flexible sheet floor covering (eg. vinyl) (2" socket outlet.), with 2" Socket BS 5255 dia. horizontal outlet with 4mm grating aperture width

Additional Information:

Weight 1kg

Body free area 14cm²

2" socket outlet.

GV5247 is a compact, lightweight, ‘P’ trapped gully for use in security shower areas decked with sheet floor covering such as vinyl, up to 3.5mm thickness - supplied with Pin Torx security screws.

1
£211.00
