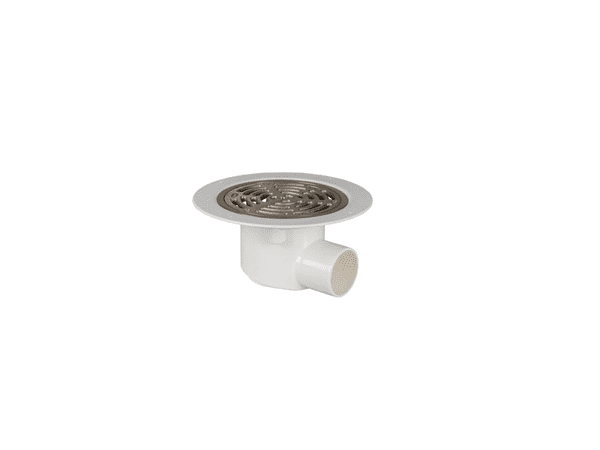

GV5103 - 'P' Trapped Shower Gully Assembly

L15
NB
GV5103

160 Dia. Nickel Bronze 'P' Trapped Shower Gully Assembly, for use with flexible sheet floor covering (eg. vinyl) (2" socket outlet.), with 2" Socket BS 5255 dia. horizontal outlet with 6mm grating aperture width

Additional Information:

Weight 1.5kg

Body free area 14cm²

2" socket outlet.

GV5103 is a compact, lightweight, ‘P’ trapped gully with peripheral slot drainage for use in shower areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.

1
£130.20
