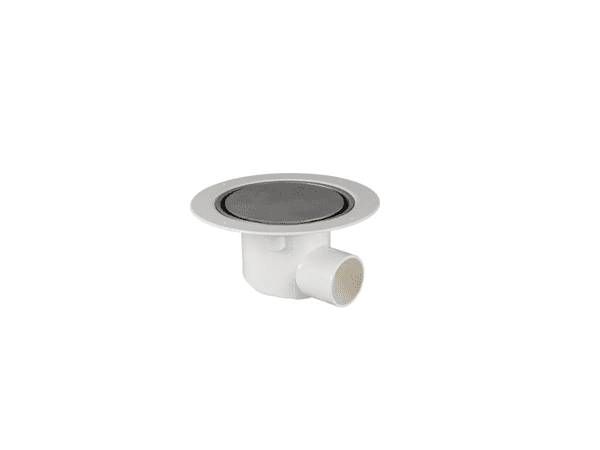

GV5007 - 'P' Trapped Shower Gully Assembly

K3
SS
GV5007

160 Dia. Stainless Steel 'P' Trapped Shower Gully Assembly, for use with flexible sheet floor covering (eg. vinyl) (2" socket outlet.), with 2" Socket BS 5255 dia. horizontal outlet with 6mm grating aperture width

Additional Information:

Weight 1.2kg

Body free area 14cm²

2" socket outlet.

GV5007 is a compact, lightweight, ‘P’ trapped gully with peripheral slot drainage for use in shower areas decked with flexible sheet floor covering such as vinyl, up to 3.5mm thickness.

1
£128.60
