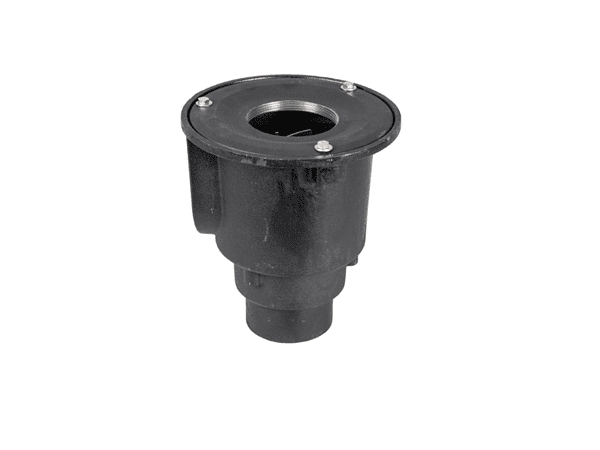

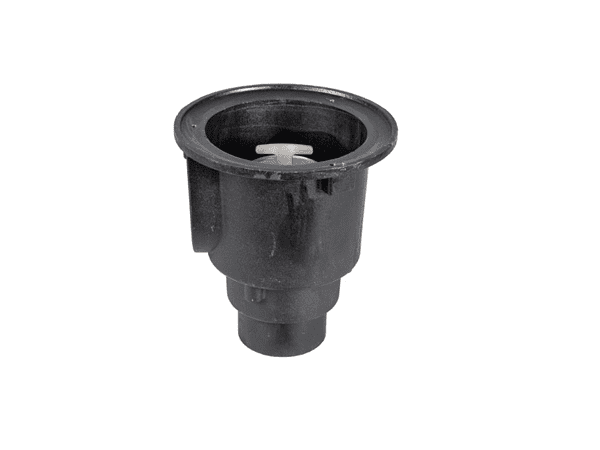

GD164 - Bell Trapped Body

CI
GD164

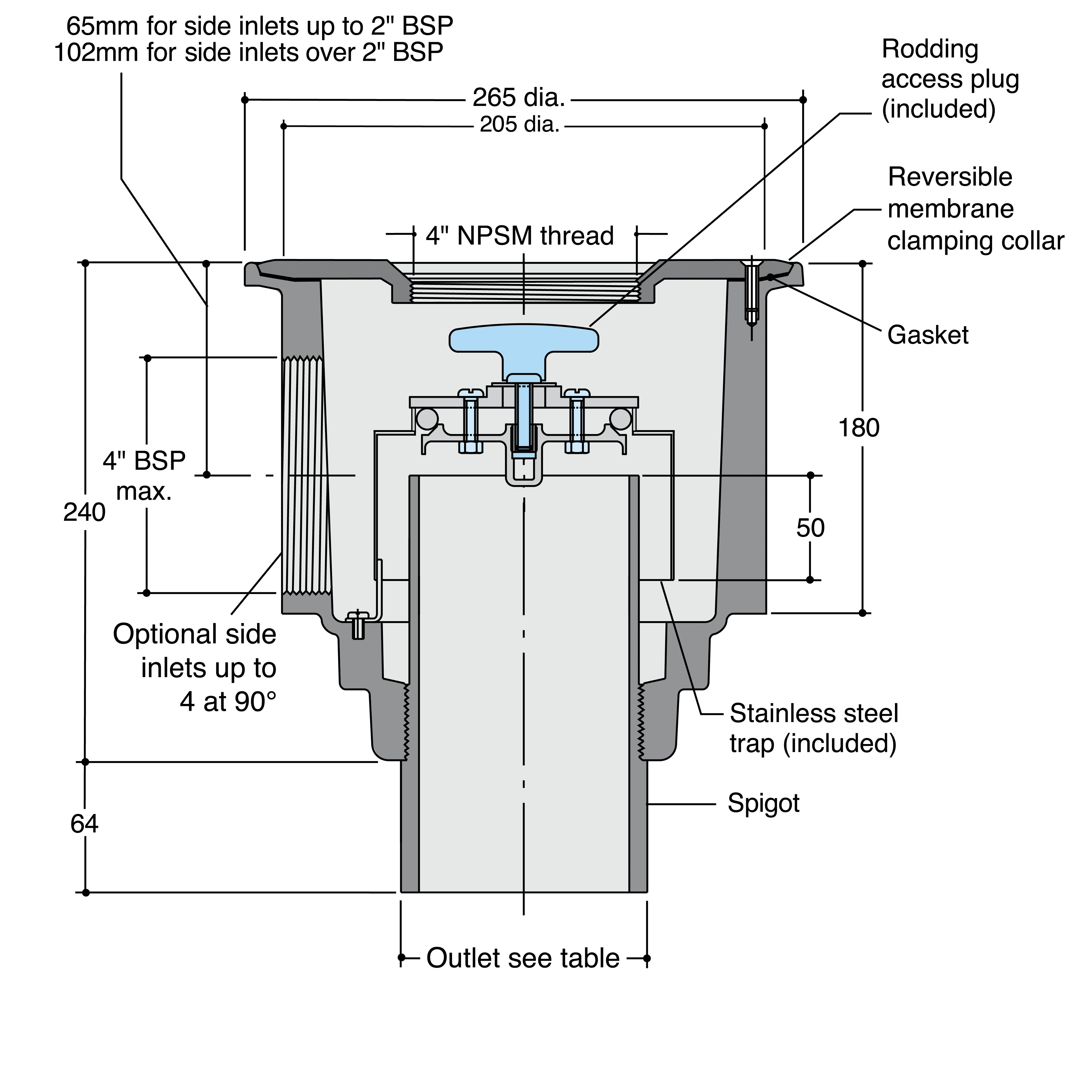

Cast Iron GD series Vari-Level Bell Trapped Body (with Optional Side Inlets), with 117 dia. vertical outlet

Additional Information:

Weight 17.3kg

Body free area 78cm²

With Optional Side Inlets

GD Series Vari-Level bell-trapped gullies with 50mm seal, enable full bore access to pipework.

-30 to 10 - add to overall grating/cover height for min/max height between body flange and FFL
