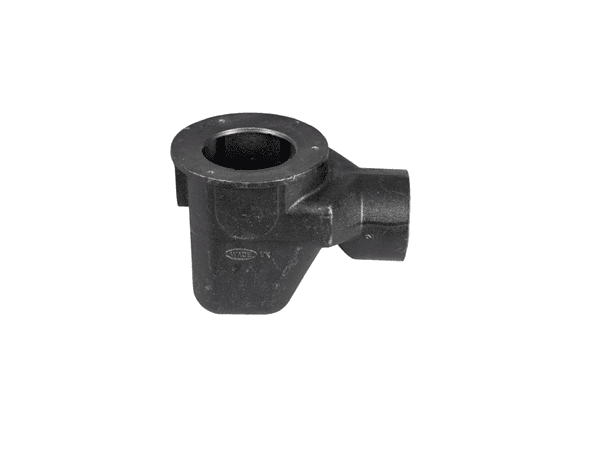

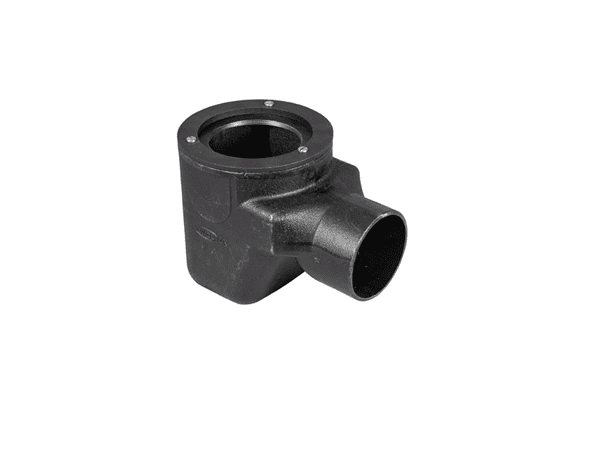

G304 - 'P' Trapped Body

CI
G304

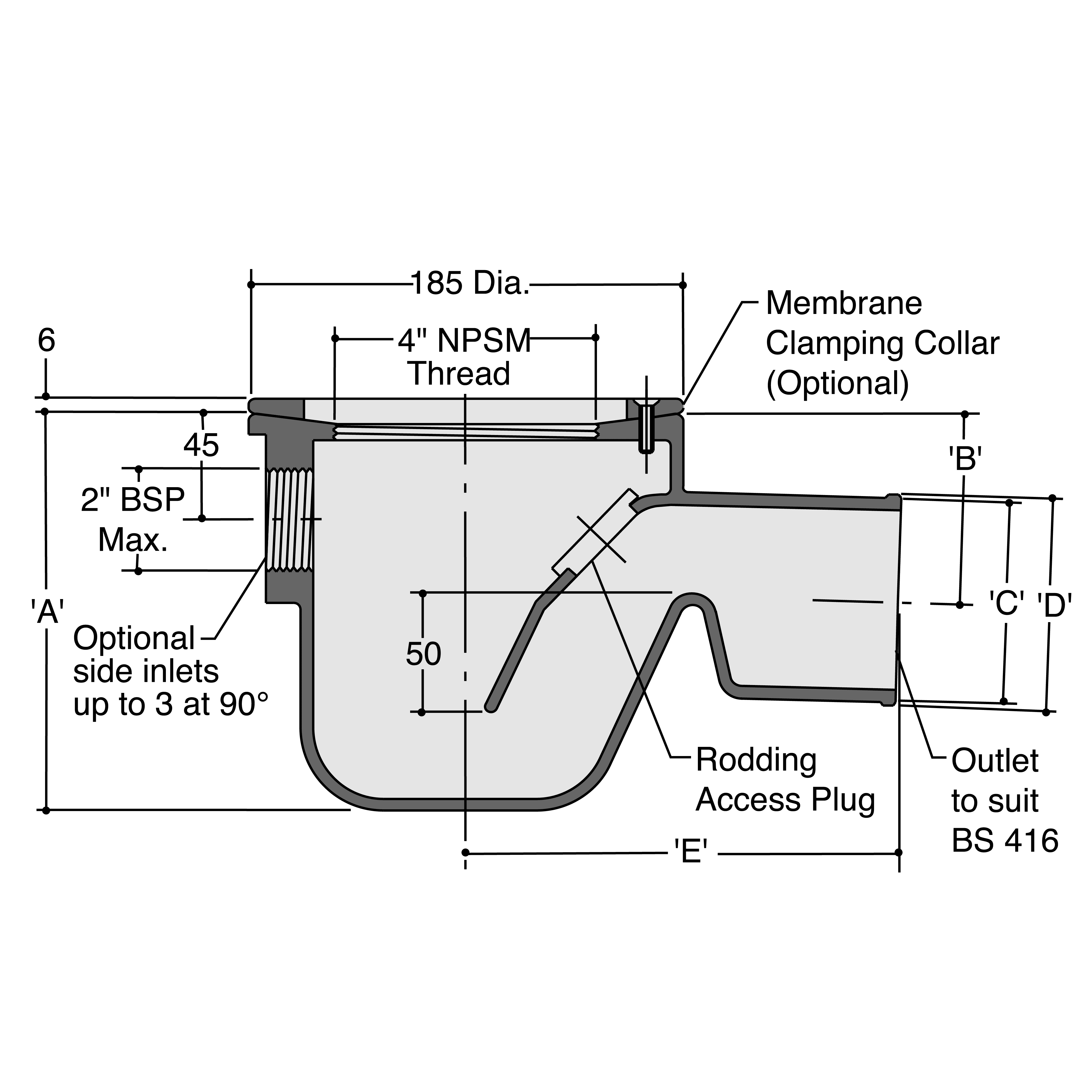

Cast Iron G series Vari-Level 'P' Trapped Body (with Optional Side Inlets), with 112 dia. horizontal outlet

Additional Information:

Weight 9.6kg

Body free area 78cm²

With Optional Side Inlets

G series Vari-Level trapped gullies with 50mm water seal, are versatile and compact, suitable for finished floor areas where limited space is available for a gully.

-30 to -10 - add to overall grating/cover height for min/max height between body flange and FFL

1
Starting at £60.40
