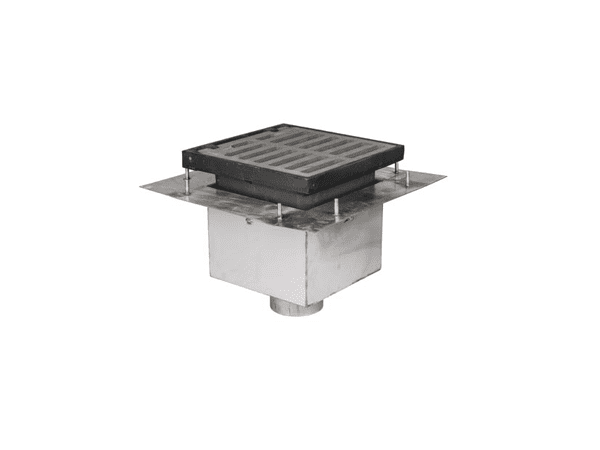

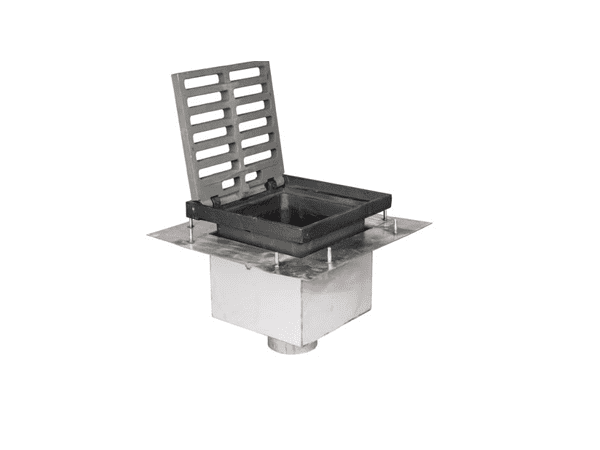

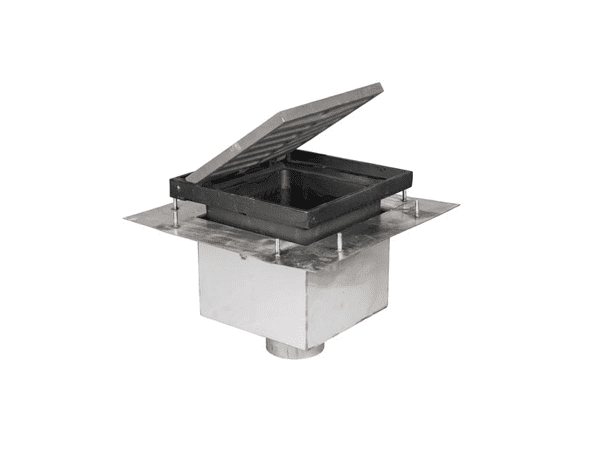

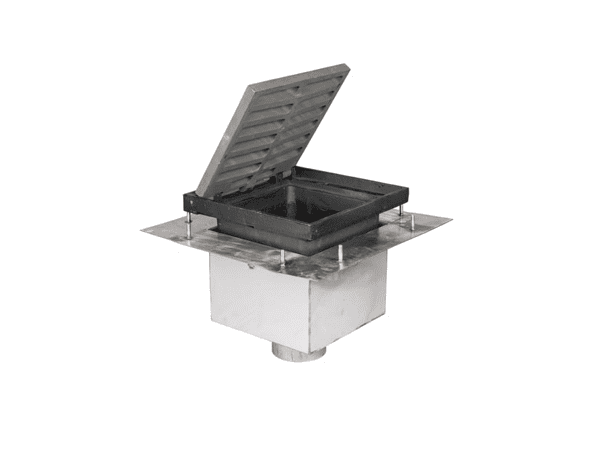

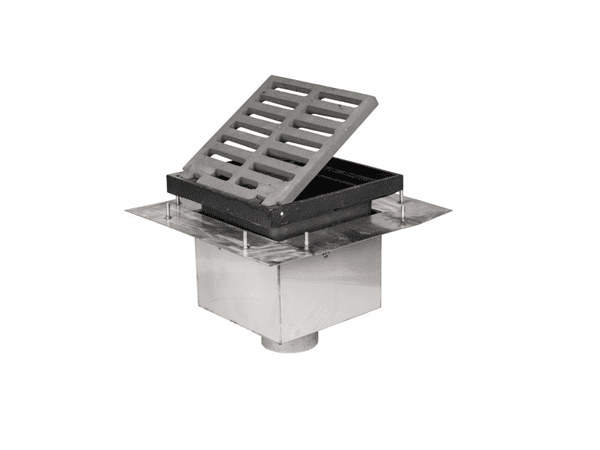

F304 - Non-Trapped Gully Assembly

M125
SS
F304

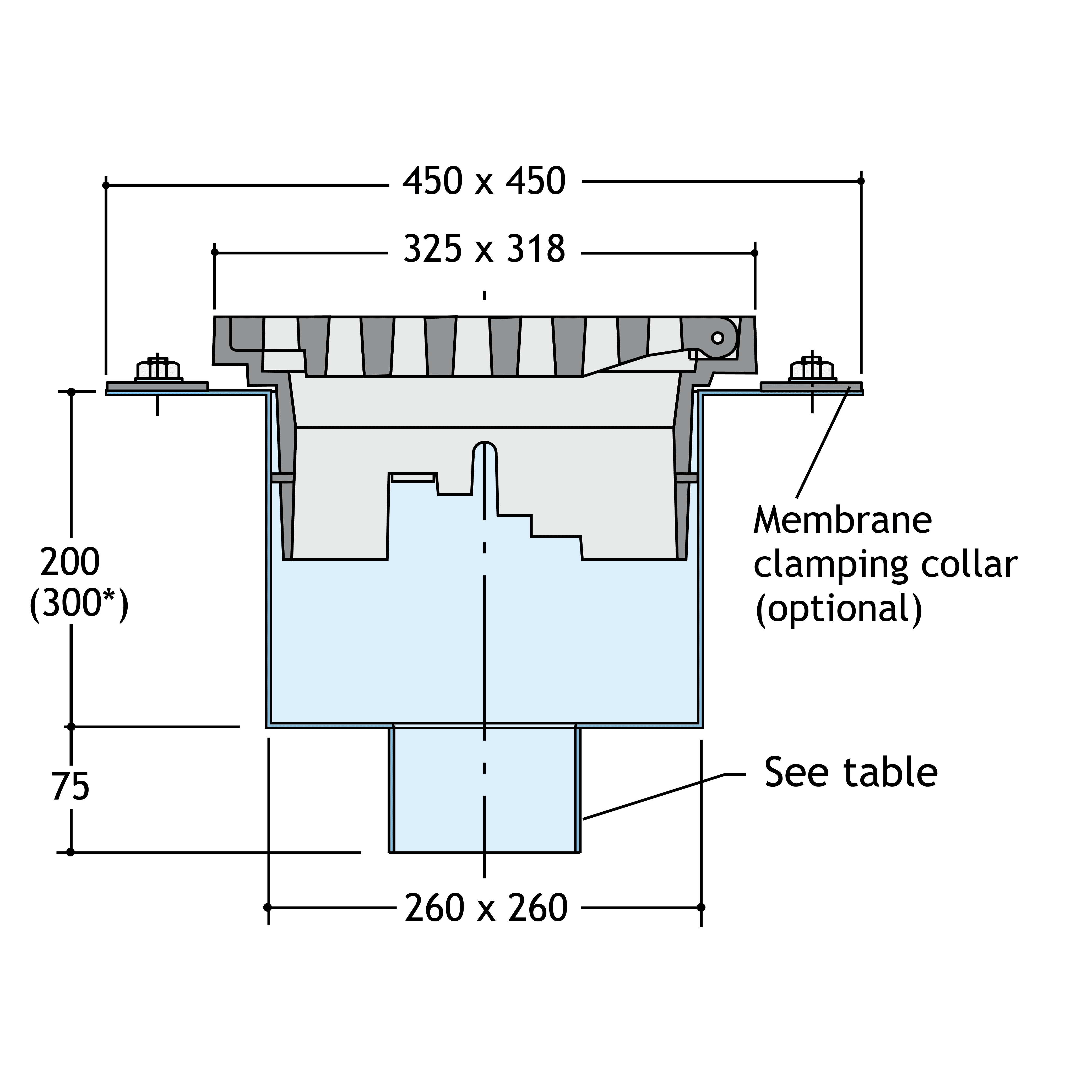

325 x 318 Stainless Steel F series Multi-Level Non-Trapped Gully Assembly, for use with unfinished (eg. bare concrete) or paved areas, with 114 dia. vertical outlet

Additional Information:

Weight 24.3kg

Grating free area 280cm²

Body free area 78cm²

F Series Multi-Level gullies with hinged grating are suited for use in warehouses, plant rooms, yards, car parks etc.

46 to 82 - min/max height between top of grating and body flange

1
£692.20
