Home >Product Range >Floor Gullies >F216
Previous Image
Next Image
Product Image Product Image Product Image

Technical Downloads

BIM / CAD / DATA SHEETS

Installation Guides

Close Technical Downloads Modal

Brochures

Filename File Type
PDF Download
Close Installation Downloads Modal

Technical Downloads

Installation Guides

Filename File Type
wade-ig-floor-gullies.pdf PDF Download
Close Technical Downloads Modal

Technical Downloads

In order to download Wade Datasheets/Drawing files you will need to log in or register for an account.

DWG Files

Filename File Type
P_F216.dwg DWG Log in
E_F216.dwg DWG Log in

RFA Files

Filename File Type
Wade_GullyBody_F216.rfa RFA Log In

F216 - Non-Trapped Gully Assembly

P400
CI
F216

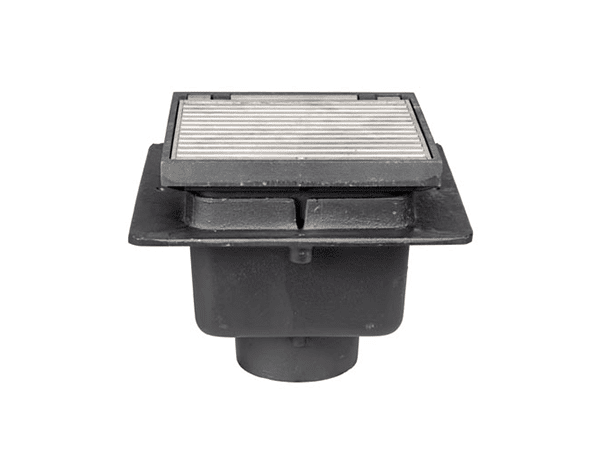

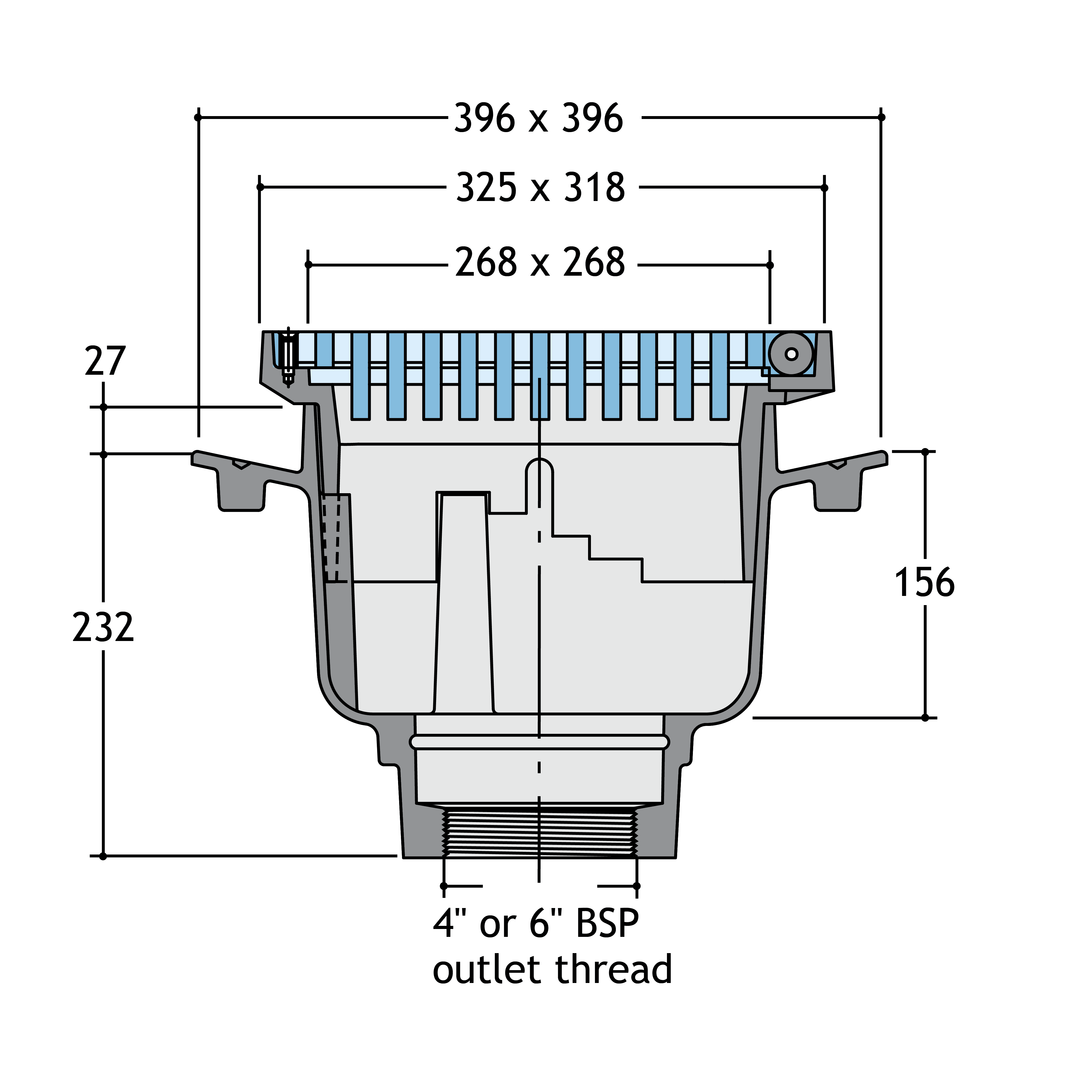

325 x 318 Stainless Steel F series Multi-Level Non-Trapped Gully Assembly, for use with unfinished (eg. bare concrete) or paved areas, with 6" BSP dia. vertical outlet

Additional Information:

Weight 53.5kg

Body free area 176cm²

F Series Multi-Level gullies with hinged grating are suited for use in warehouses, plant rooms, yards, car parks etc.

106 to 70 - min/max height between top of grating and body flange

1
£0.00
