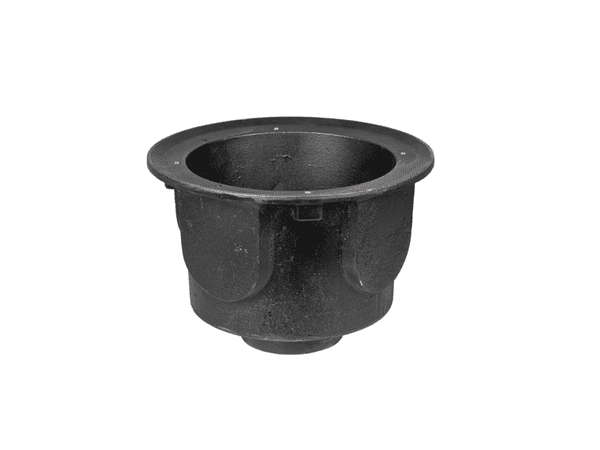

E404 - Non-Trapped Body

CI
E404

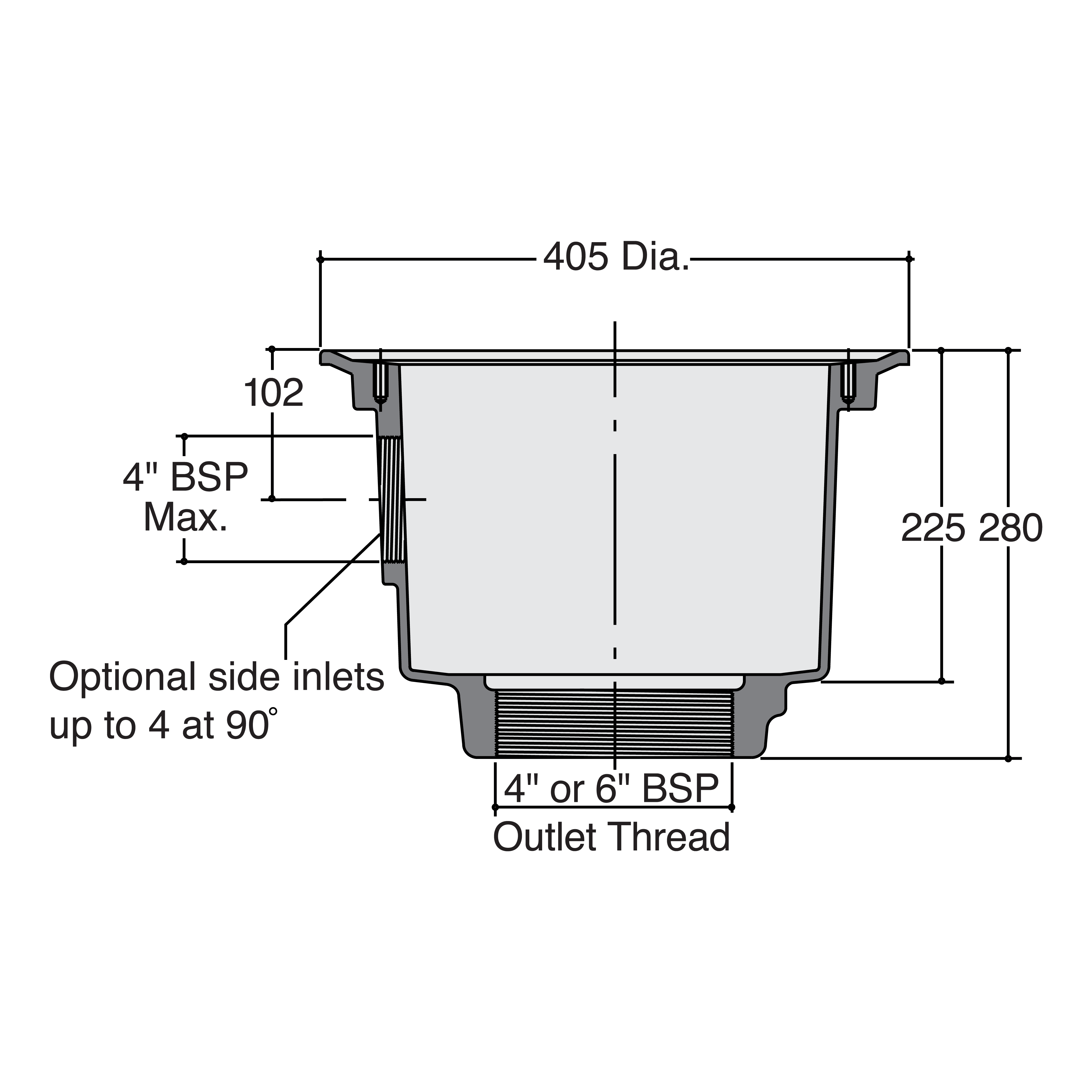

Cast Iron E series Multi-Level Non-Trapped Body (Deep Sump plus Optional Side Inlets), with 4" BSP dia. vertical outlet

Additional Information:

Weight 29.4kg

Body free area 78cm²

Deep Sump plus Optional Side Inlets

E Series Multi-Level gullies are suited for plant rooms, yards, car parks etc.

-35 to 15 - add to overall grating/cover height for min/max height between body flange and FFL

1
£297.80
