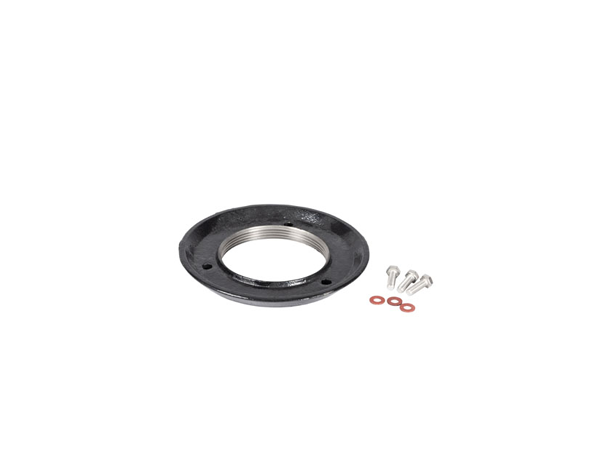

C.D10 - Membrane Clamping Collar

CI
C.D10

Cast Iron D10 - D12 series Vari-Level Membrane Clamping Collar (To fit D10-D12 series Vari-Level gully bodies. Has 4" NPSM thread to accept 4" throat Vari-Level Gratings/Access Covers/Funnels. Gasket included.)

Additional Information:

Weight 1.25kg

To fit D10-D12 series Vari-Level gully bodies. Has 4" NPSM thread to accept 4" throat Vari-Level Gratings/Access Covers/Funnels. Gasket included.

-20 to 0 - add to overall grating/cover height for min/max height between body flange and FFL

1
£22.60

Key Features

  • • Compatible with all Vari-Level Gratings and Rodding Eyes
  • • Membrane clamping collar allows for up to 30mm thickness of damp proof membrane
  • • Suitable for use with Asphalt.

Technical - Did you know?

  • • The membrane clamping collar must be ordered separately
  • • Use spec code C.D10 for standard 4” NPSM throat collar
D10 - D12 series
