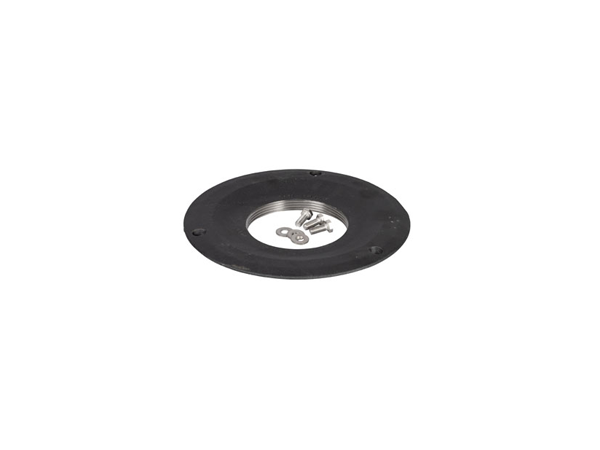

C.D - Membrane Clamping Collar

CI
C.D

Cast Iron D series Vari-Level Membrane Clamping Collar (To fit D2-D7 series Vari-Level gully bodies. Has 4" NPSM thread to accept 4" throat Vari-Level Gratings/Access Covers/Funnels. Gasket included.)

Additional Information:

Weight 2.25kg

To fit D2-D7 series Vari-Level gully bodies. Has 4" NPSM thread to accept 4" throat Vari-Level Gratings/Access Covers/Funnels. Gasket included.

-30 to 10 - add to overall grating/cover height for min/max height between body flange and FFL

1
Starting at £22.60

Key Features

  • • Compatible with all Vari-Level Gratings and Rodding Eyes
  • • Reversible membrane clamping collar for additional height adjustability
  • • D4 Series Body allows for up to 4 side inlets

Technical - Did you know?

  • • The membrane clamping collar must be ordered separately
  • • Use spec code C.D for standard 4” NPSM throat collar
