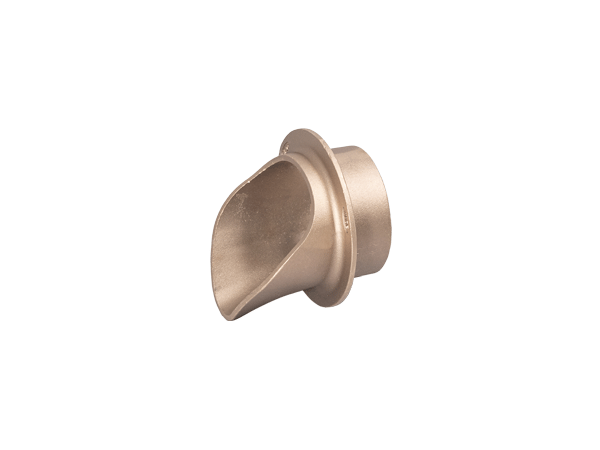

WJ104 - Downspout Nozzle

GM
WJ104

Gunmetal Parapet Downspout Nozzle, with 4" BSP dia. outlet

Additional Information:

Weight 3.9kg

Downspout outlet with threaded inlet, designed for installation on the outside face of a parapet wall to discharge water to lower levels

1
Starting at £166.31
